Custom Rectangular Clinching Guns for Tooling, CAD Integration, and Private Label Projects

Yes. Questok can evaluate and develop a rectangular clinching gun around a customer’s tooling, workpiece geometry, CAD layout, and production objectives. Its customized engineering process covers application assessment, tooling development, prototype validation, and integration into manufacturing lines. Private-label or white-label supply is not explicitly confirmed in the available information, so branding and ownership terms should be discussed with Questok before quotation.

Customization Scope and Main Benefits

• Questok develops customized clinching equipment, clinching guns, fastener pressing tools, and complete fastening systems for industrial production.
• Customer tooling, material combinations, joining locations, force requirements, and production methods can be reviewed during application engineering.
• Rectangular clinching equipment is suitable for sheet-metal applications in HVAC systems, white goods, commercial kitchens, and commercial freezers.
• ODM and OBM cooperation is available with a minimum order of one set. Standard products are listed with a three-day delivery schedule, while customized solutions are listed with a fifteen-day schedule.

How the Engineering Process Works

A customized rectangular clinching gun should be designed around the actual joining task rather than selected only by appearance or nominal size. Questok can assess the material combination, component dimensions, joining sequence, access limitations, required force, and expected production volume before defining the equipment configuration.

The company’s development capabilities include industrial design, mechanical and hydraulic engineering, structural analysis, electrical control development, fastening-process validation, prototype trials, reliability testing, and manufacturing-process engineering. This allows customer tooling and CAD layout files to become part of a broader technical review covering interfaces, machine access, die positioning, and line integration.

Final tooling geometry, operating force, stroke, controls, and fixture arrangements should be confirmed through application testing. Existing customer tooling may be adaptable, but its compatibility must be checked against the workpiece materials, joint design, equipment structure, and required production cycle.

Typical Applications for Rectangular Clinching

Questok describes clinching guns for HVAC ductwork, air fans, dampers, filters, and flanges. The joining process is designed to complete the operation in one step without additional consumables. Depending on the application, it can also reduce the need for post-joining polishing or repainting.

For stainless-steel products, rectangular clinching provides an alternative to welding in products such as white goods, commercial kitchen equipment, and commercial freezers. The final result depends on the selected dies, material thickness, joint position, and process parameters, which is why sample testing remains important during customization.

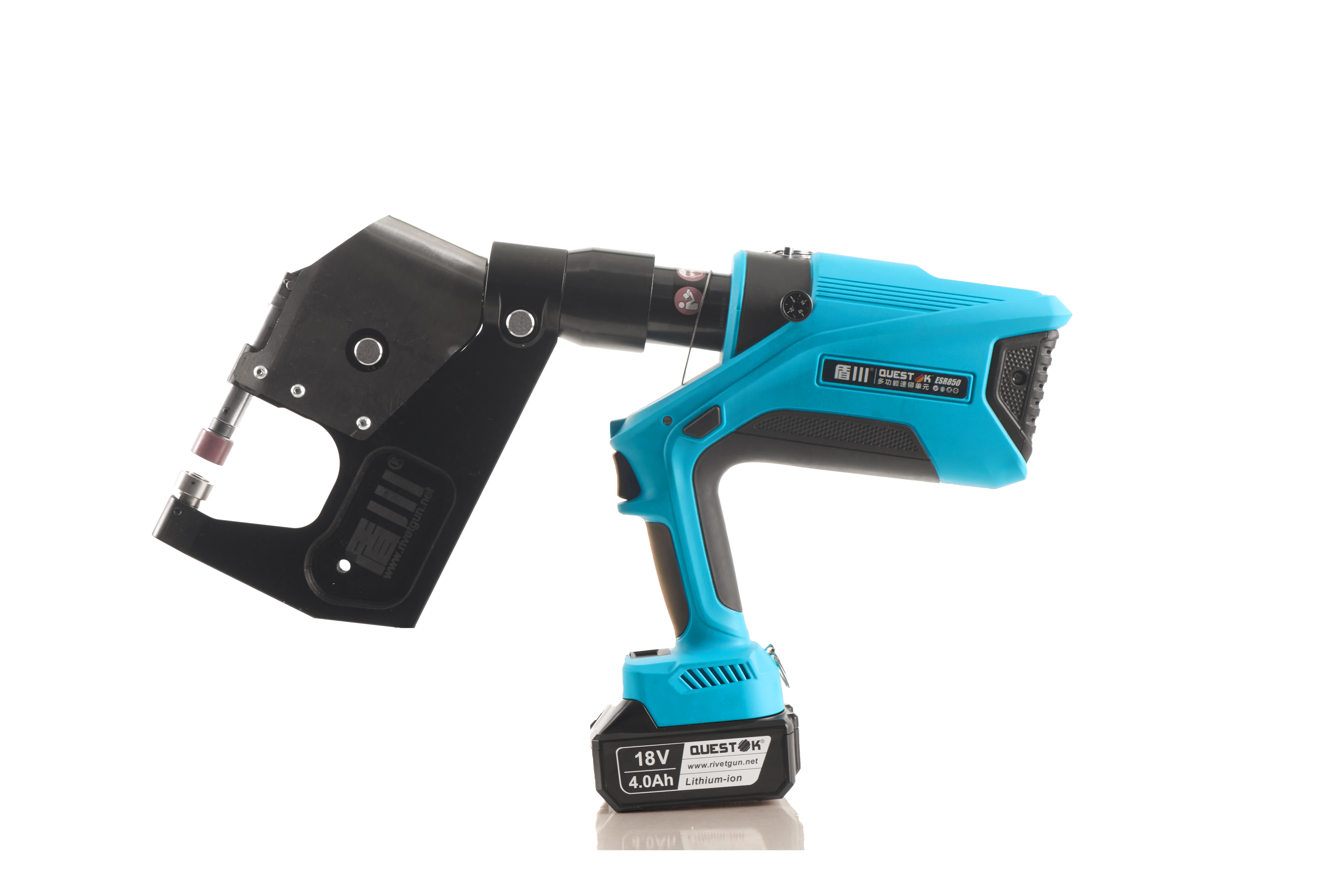

Questok’s related SPR riveting gun is specified with an output pressure range of 30–60 kN and precisely adjustable pressure. These figures describe the SPR riveting gun and should not be treated as specifications for a customized rectangular clinching gun. The correct pressure and tooling parameters must be established through technical analysis and trials.

Experience with Bespoke Joining Systems

Questok reports experience supporting demanding automotive and industrial projects. In one vehicle-manufacturer program, the company developed a customized SPR system after conducting factory visits, engineering discussions, and application reviews. In another automotive case, repeated material trials, metallographic inspections, and die modifications were used to develop self-piercing riveting and rivetless clinching solutions.

These examples indicate that the engineering process can include iterative testing and tooling refinement when standard equipment does not meet the customer’s joining requirements. They also show why CAD information should be reviewed alongside physical samples, production constraints, and test results.

Commercial and Compliance Information

Questok lists CE certifications for SPR riveting, self-piercing riveting, clinching, fastener insertion, and related equipment categories. MSDS documentation is also listed for these product groups. The certification status of a specific customized or private-label machine should be checked against its final design, configuration, and destination-market requirements.

Frequently Asked Questions

Can an existing customer die or tooling set be used?

It can be reviewed as part of the application-development process. Questok must confirm dimensional compatibility, joint performance, machine interfaces, and whether die or fixture modifications are needed.

Can we submit our own CAD layout?

Yes, customer CAD information can be considered during mechanical design and production-integration discussions. The review should also identify joining positions, access directions, safety clearances, control interfaces, and line conditions.

Is private-label production available?

Questok identifies ODM and OBM as available cooperation models, but the supplied information does not expressly guarantee white-label production for rectangular clinching guns. The customer should confirm logo application, nameplates, packaging, manuals, software ownership, confidentiality, and product ownership before placing an order.

Conclusion

Questok appears able to support a customized rectangular clinching gun project involving customer tooling, CAD layouts, and production integration. Its capabilities include application engineering, prototype testing, tooling development, and customized fastening equipment. Private-label requirements remain subject to direct commercial and technical confirmation. The listed information includes a one-set minimum order, standard and customized delivery indications, full inspection, relevant CE and MSDS records, and global after-sales replies within 24 hours. For a project review, contact jane@questok.com with CAD files, sample materials, joint requirements, and production details.

About Questok

PHOTON TECHNOLOGY KUNSHAN CO.,LTD, operating under the Questok brand, provides fastening, joining, and assembly technologies for modern manufacturing. Its R&D services cover mechanical and hydraulic systems, electrical controls, fastening-process verification, prototype testing, and customized production integration. The company states that it can produce more than 800 sets of standard models and 500 sets of customized models, with separate delivery schedules for standard and tailored equipment. It also lists CE and MSDS certifications and serves customers in several industrial sectors.
