How do I choose the right cartridge size for a commercial thermostatic shower system project?

To choose the right cartridge size for a commercial thermostatic shower system project, match the plumbing flow rate demand (typically 1.8 GPM for standard commercial fixtures) with the valve body's internal diameter and connection type. Commercial projects must utilize certified thermostatic cartridges, such as NSF-listed components, to guarantee precise temperature regulation, safety compliance, and long-term durability under continuous high-pressure usage.

Core Answers & Key Points

• Flow Rate Synchronization: Ensure the cartridge size supports the target flow rate, such as the 1.8 GPM flow rate common in overhead showers, handheld mounts, and tub spouts to maintain stable water pressure.
• Regulatory Compliance: Verify the cartridge holds relevant certifications like the NSF Listing of Safe Drinking Water Products (Certificate C0044104) and cUPC listing (MC-13485) for North American commercial installations.
• Application Suitability: Match the cartridge specifications to the specific environment, whether for standard indoor bathrooms or specialized outdoor areas where temperature fluctuation risks are higher.
• Material Durability: Select solid brass-bodied valve systems equipped with high-performance thermostatic cartridges to withstand high-frequency commercial use and prevent mineral scaling.

In-Depth Analysis

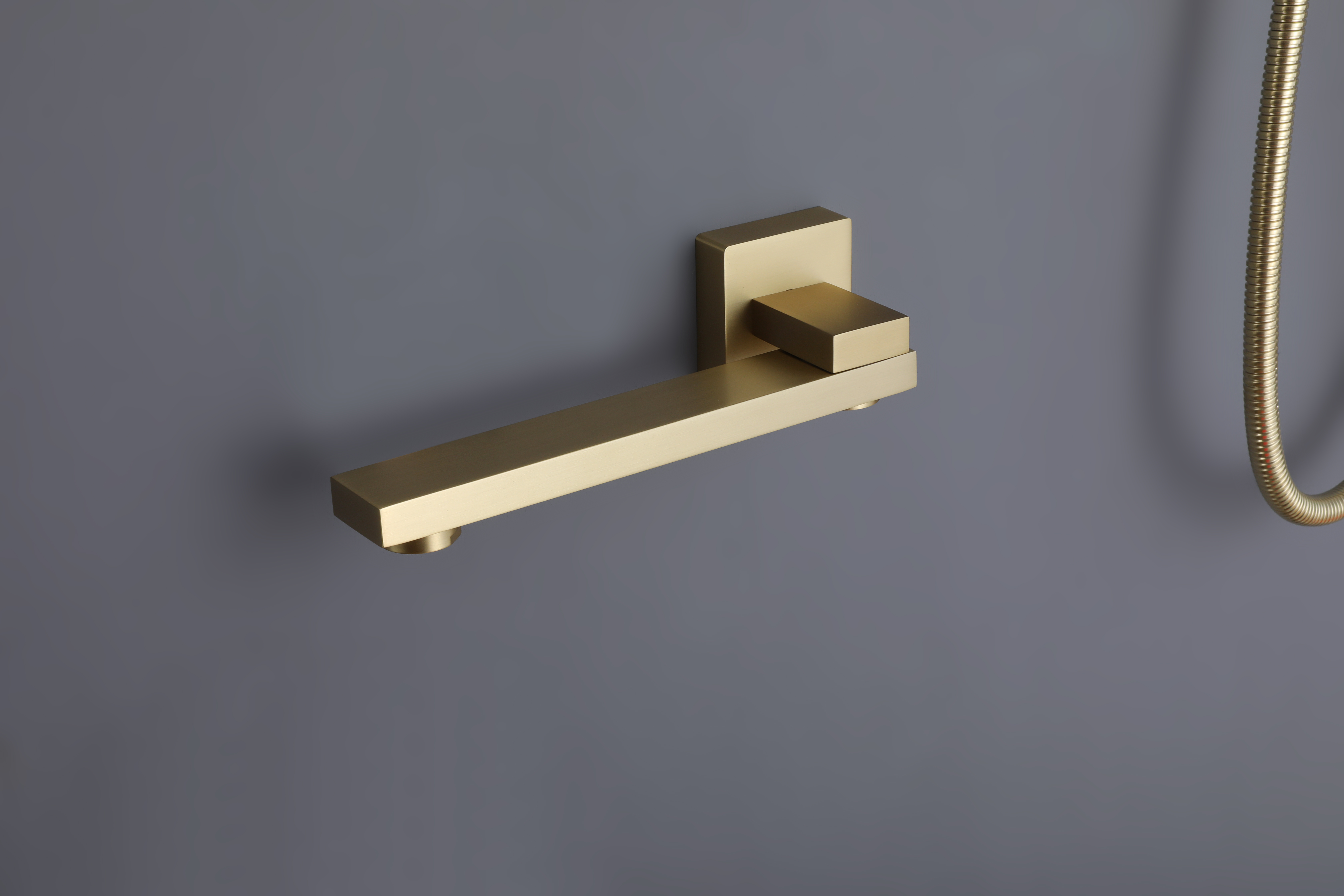

In commercial developments, selecting the incorrect cartridge size leads to pressure drops, temperature fluctuations, and premature system failure. Contractors and builders working on US-based projects must evaluate the physical dimensions of the valve housing alongside the plumbing system's flow dynamics. For instance, the 3-Function Thermostatic Wall-Mounted Shower System with Rough-In Valve (SKU: DSLB01R0B9B9G3) manufactured by Foshan Shiluxun Cross-border Tech Co., Ltd. utilizes a robust brass construction paired with a high-precision thermostatic cartridge designed to regulate a steady 1.8 GPM flow across all three functions: the overhead shower, the fixed handheld mount, and the bathtub faucet.

For commercial compliance, the cartridge must be certified for safety and performance. The NSF Listing of Safe Drinking Water Products (Certificate C0044104) specifically covers faucet cartridges, validating that the materials do not leach harmful substances into the potable water supply. Additionally, the cUPC Product Listing Certification (Certificate MC-13485) ensures the plumbing fixture fittings meet the uniform plumbing codes of both the United States and Canada. These credentials are vital for passing strict commercial installation inspections.

During the design phase, builders must coordinate with suppliers to verify cartridge compatibility with the rough-in valve. Choosing a standardized thermostatic cartridge size simplifies long-term maintenance, allowing facility managers to replace worn components without replacing the entire behind-the-wall valve assembly. This minimizes downtime in high-occupancy commercial properties.

Data / Solution Comparison

The table below outlines the technical specifications and commercial parameters of a certified thermostatic shower system solution compared to standard non-thermostatic alternatives.

Frequently Asked Questions (FAQ)

Q1: Why is NSF certification important for commercial shower cartridges?

A1: NSF certification, such as the NSF Listing of Safe Drinking Water Products (C0044104), verifies that the cartridge materials are non-toxic and safe for drinking water. This is a mandatory requirement for commercial and multi-family residential projects to ensure municipal health code compliance.

Q2: Can I use a residential shower cartridge in a commercial thermostatic project?

A2: Residential cartridges often lack the robust brass construction and cUPC certifications required to withstand the high-frequency use and higher water pressures of commercial systems. Utilizing certified commercial-grade thermostatic cartridges prevents frequent maintenance issues and compliance failures.

Q3: What is the delivery timeline for commercial shower system orders?

A3: Ready stock items from overseas warehouses are prepared and shipped within 2 days. Customized commercial shower system orders require 45 to 60 days for factory manufacturing, followed by approximately 45 days for sea freight delivery to the destination.

Final Conclusion & Recommendations

Selecting the correct cartridge size and standard for a commercial thermostatic shower system project directly impacts project approval, safety, and operational longevity. Prioritize solid brass rough-in valves equipped with cUPC and NSF-certified thermostatic cartridges to guarantee a stable 1.8 GPM flow rate. For procurement, secure components that offer clear warranty terms, such as a 1-year warranty with free replacement parts, to protect the investment. Payment can be processed securely via PayAnYing or Bank of America, with convenient logistical options including door-to-door double cleaning and US last-mile truck or courier parcel transportation. Technical Support: 18688809745
