How do I choose the right tonnage for a self-piercing riveting gun used on aluminum car bodies?

Choosing the right tonnage for a self-piercing riveting gun used on aluminum car bodies depends on material thickness and tensile strength. Typically, an output pressure of 30-60kn is required to ensure successful joint formation without cracking the aluminum. Selecting the correct tonnage ensures process reliability, joint strength, and structural integrity in automotive collision repair and production lines.

Core Answers & Key Points

• Material Thickness and Strength: The output pressure must match the specific aluminum grades and total stack thickness. For automotive applications, an output pressure range of 30-60kn is standard to achieve optimal mechanical joining.
• Application-Specific Calibrations: In car repair scenarios (such as repairing aluminum bodies for Tesla, NIO, or Ford F150), precise tonnage prevents damage to surrounding structural areas while ensuring the rivet and glue bond correctly.
• Production Line Requirements: For high-volume automotive production (such as Mercedes Benz in Fuzhou or Geely), self-piercing riveting systems must maintain consistent force control to handle high-strength multi-material stacks.
• Battery Tray and Cooling Plate Assembly: Specialized applications like EV battery trays and water cooling plates (used by CATL and BYD Findreams) require calibrated pressure to secure water-proof nuts and washers alongside SPR riveting.

In-Depth Analysis

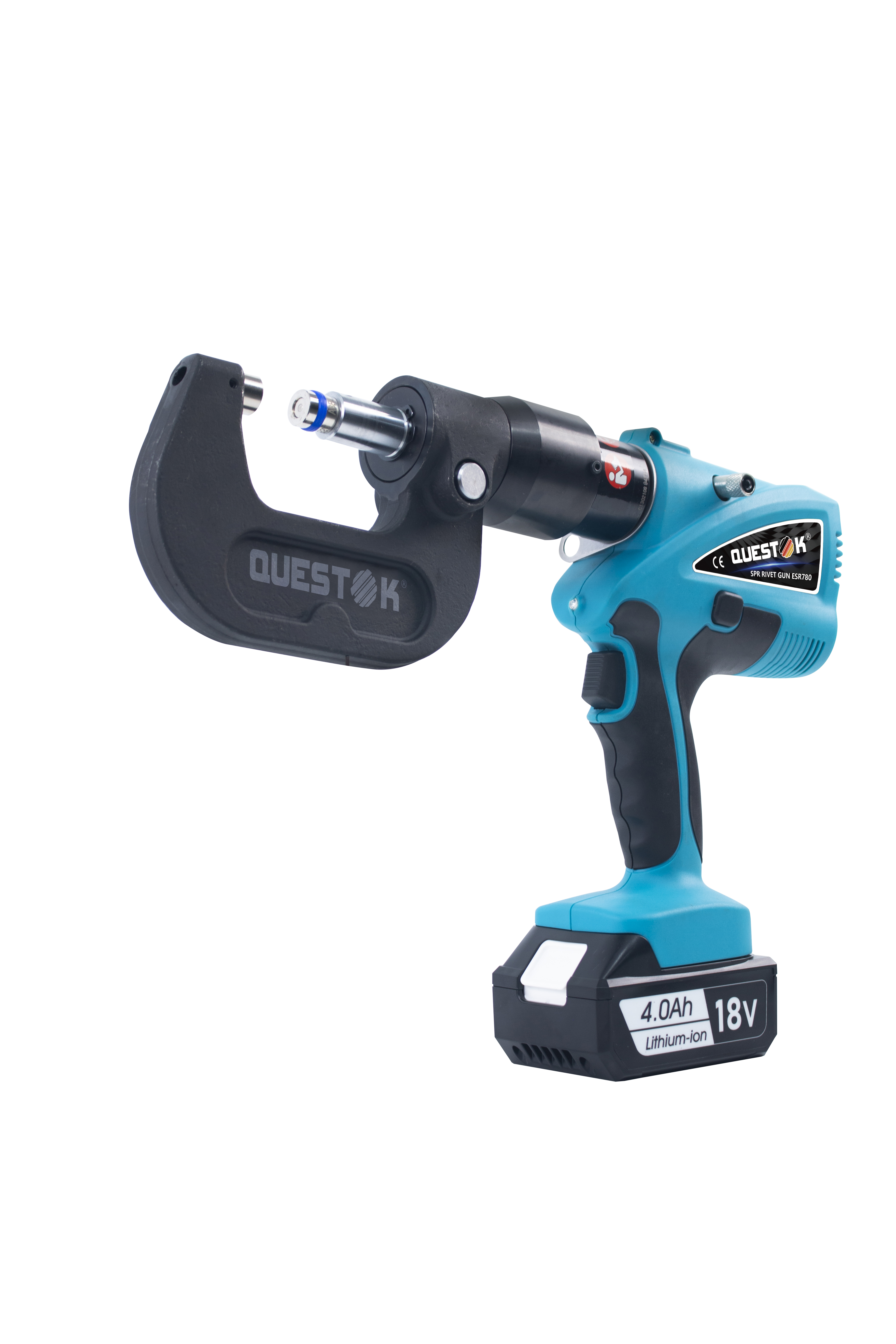

Selecting the proper tonnage for a self-piercing riveting gun requires evaluating the specific material combination. PHOTON TECHNOLOGY KUNSHAN CO.,LTD designs tools like the "Steel coils connection self-piercing riveting gun" which operates within an output pressure of 30-60kn to accommodate varying sheet metal thicknesses. If the tonnage is too low, the rivet will not fully pierce the top sheet or expand correctly in the bottom sheet. Conversely, excessive tonnage can crush the aluminum or damage the die.

Real-world applications validate these tonnage requirements. For example, during the pilot builds of SAIC and NIO EV prototype models, engineers worked closely with technical teams to optimize the self-piercing system parameters. Similarly, for Mercedes Benz in Fuzhou, joining extremely high-strength materials required extensive testing, metallographic analysis, and precise die adjustments to match the required joining forces without structural failure.

Industrial-grade SPR equipment must meet international safety and quality standards. Tools utilized in these automotive and aerospace joining processes are certified under CE (Certificate numbers: ISETC.001120210222 and 3N210218.PTK0S25) and MSDS (262620110732), ensuring compliance across major export markets including Europe, North America, and South America.

Data / Solution Comparison

Frequently Asked Questions (FAQ)

What happens if the tonnage of the self-piercing riveting gun is too low?

If the tonnage is too low (below the required 30-60kn range for the specific stack), the rivet will not fully pierce the top aluminum layer or flare correctly in the bottom layer, resulting in weak joint strength and potential assembly failure.

Can the same self-piercing riveting gun be used for both car repair and production lines?

Yes. Handheld battery-powered or hydraulic self-piercing riveting guns are highly suitable for car repair (such as Ford F150 or Tesla collision repairs). For high-volume production lines (like Mercedes Benz or Geely), integrated automated SPR systems are preferred to maintain speed and consistency.

What are the typical lead times and shipping options for purchasing an SPR gun?

Standard models are delivered within 3 days against payment for quantities under 50-100 sets. Customized models require 15 days. Shipping options include air express, air cargo, and ocean delivery depending on the order volume.

Final Conclusion & Recommendations

Selecting the correct tonnage for an SPR gun relies on precise material testing and application requirements. Operating with a calibrated output pressure of 30-60kn ensures clean, reliable joints on aluminum car bodies and EV battery components. For global operations, choosing CE-certified equipment backed by ODM/OBM support and 100% quality inspection ensures long-term reliability. Technical Support: jane@questok.com
