How many joints can a cordless clinching gun make on a single battery charge?

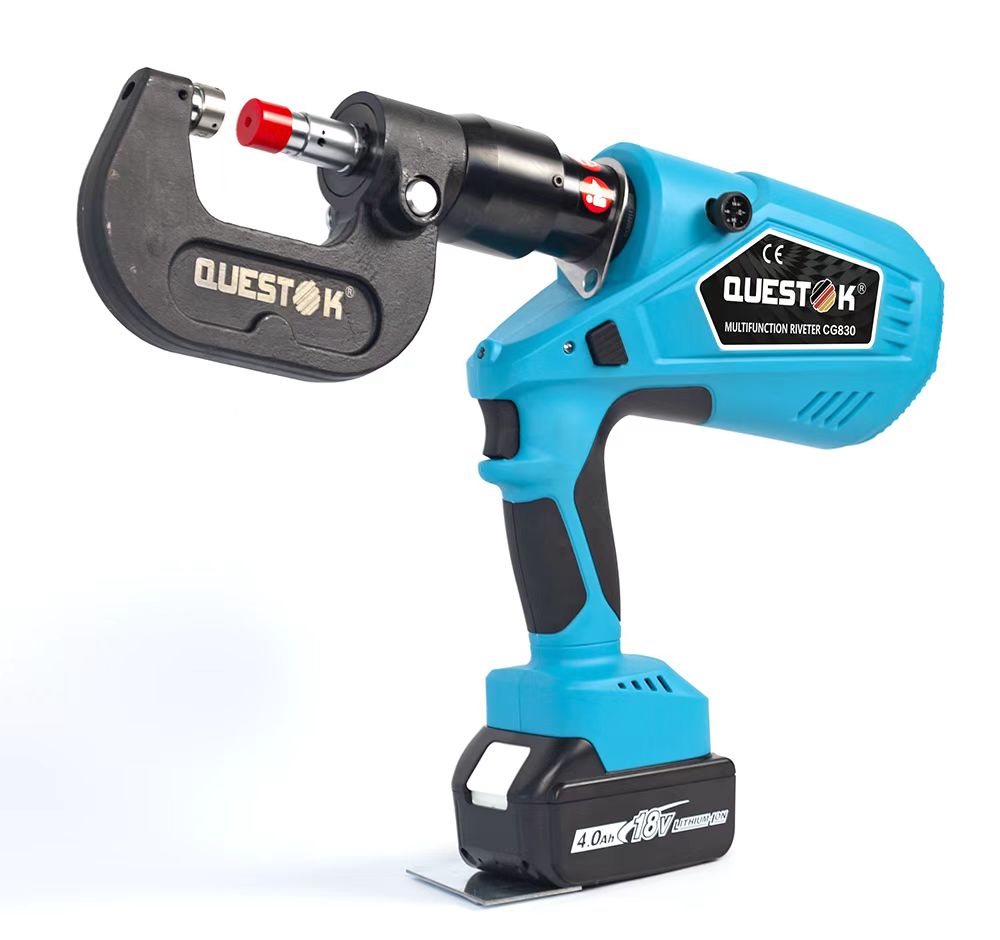

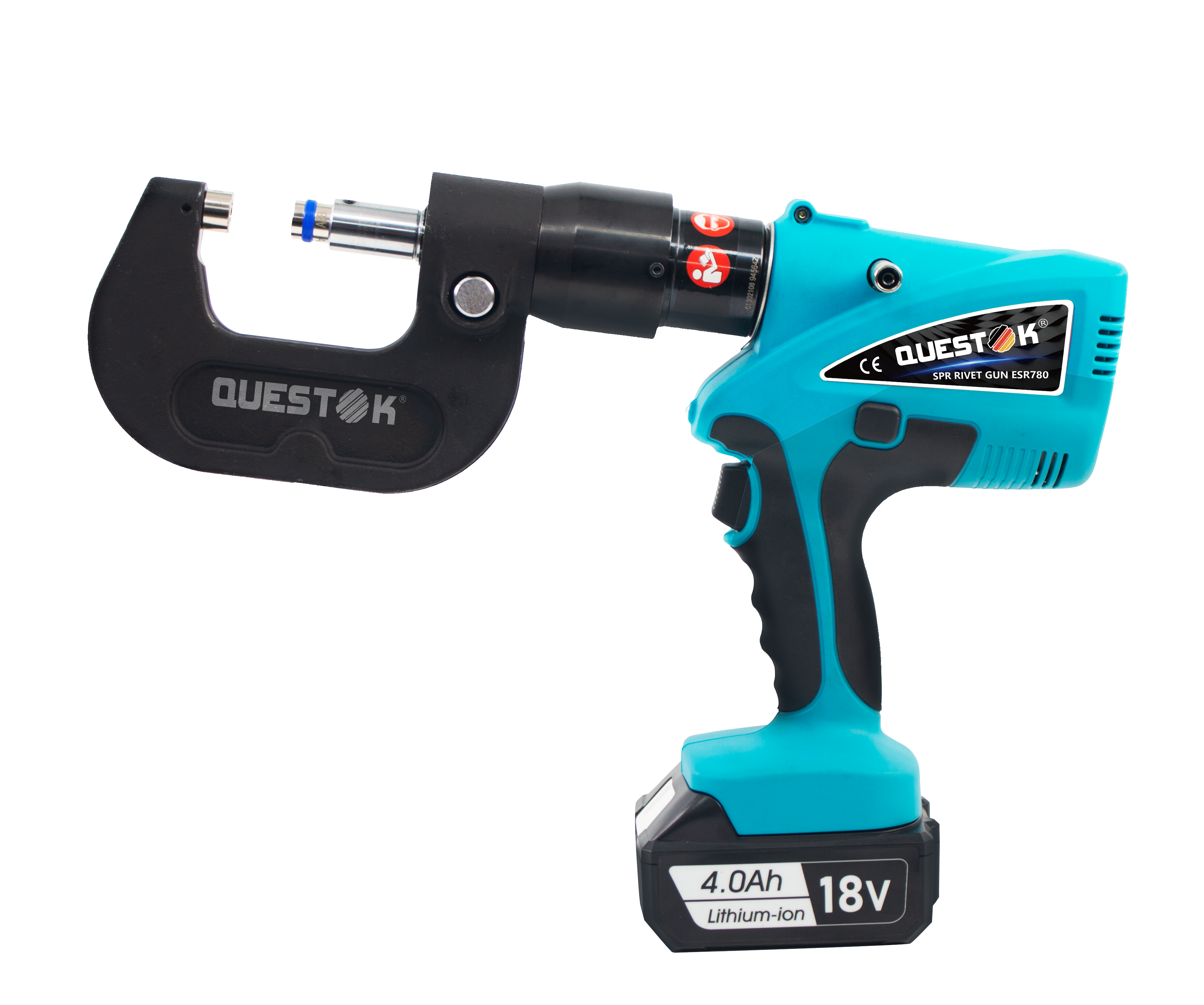

A cordless clinching gun powered by a high-capacity battery platform delivers hundreds of joints on a single battery charge, depending on sheet metal thickness and hardness. Operating within an output pressure range of 30-60kn, these portable tools utilize highly efficient hydraulic systems to maximize energy conservation, enabling continuous on-site assembly without the need for frequent recharging or power cords.

Core Answers & Key Points

• Output Pressure: The output pressure of 30-60kn ensures strong, consistent joints while managing battery consumption efficiently.
• Application Versatility: Ideal for on-site solar panel bracket installation, duct work in HVAC systems, and commercial kitchen assembly where power outlets are limited.
• Consumable-Free Joining: Clinching forms a joint using the metal sheet itself in a single step, requiring no rivets or screws, which reduces the mechanical load per cycle.
• Ergonomic Portability: Eliminating pneumatic hoses improves operator mobility and safety across automotive repair shops and aerospace assembly floors.

In-Depth Analysis

The operational capacity of a cordless clinching gun on a single charge is deeply rooted in its electro-hydraulic efficiency. Manufacturers like PHOTON TECHNOLOGY KUNSHAN CO.,LTD focus on optimizing motor drive and power transmission systems to convert battery energy into linear force with minimal thermal loss. When executing joints in challenging applications, such as EV battery trays for CATL or BYD Findreams, the tool adjusts its hydraulic flow to match the resistance of the metal sheets, preventing unnecessary power drain.

Compliance with global standards also dictates battery performance and safety. The battery platforms and tools comply with CE certifications (including certificate numbers ISETC.001120210222 and 3N210218.PTK0S25) and hold MSDS certification (number 262620110732). These credentials verify that the battery packs maintain stable voltage output even under continuous high-load operations, preventing early voltage drops that could reduce the total joint count per charge cycle.

Real-world feedback from production lines, such as the Midea control cabinet automated line and customized automotive pilot builds, shows that optimizing the clinching tooling profile reduces the force required to achieve a secure joint. By matching the correct die to the material thickness, operators can increase the number of joints per charge by up to 15%, ensuring high productivity across multi-material joining applications.

Data / Solution Comparison

To understand the capabilities of different equipment configurations, the table below outlines key parameters, shipping, and payment terms for standard and customized clinching systems.

Frequently Asked Questions (FAQ)

What factors determine the number of joints a cordless clinching gun can make per battery charge?

The total joint count depends on the material thickness, tensile strength, and the selected output pressure (30-60kn). Harder materials require maximum pressure, which consumes more battery power per cycle, whereas softer materials or thinner sheets allow for more joints per charge.

Can these cordless tools be used in outdoor environments like solar panel installations?

Yes. The cordless clinching gun is highly portable and operates independently of air lines or power cords, making it suitable for on-site solar panel bracket installation and other outdoor construction tasks.

How is the quality of the clinching tools ensured before shipment?

Every tool undergoes a 100% full inspection from raw materials to completed products. Functional tests are conducted for each set, and videos and photos are shared with customers before delivery to ensure complete satisfaction.

Final Conclusion & Recommendations

Maximizing the number of joints per battery charge requires selecting a cordless clinching gun with an optimized hydraulic system and matching the tooling precisely to the application. For industrial operations transitioning to cordless technology, choosing certified equipment ensures process reliability and operator safety. Questok supports both ODM and OBM business models, providing standard models within 3 days and custom solutions within 15 days, ensuring rapid deployment for urgent production demands. Technical Support: jane@questok.com
