How to Evaluate a New UV Printer for Cola Cups and Cylindrical Products

Replacing a Cola cup UV printer requires more than comparing headline print speeds. Buyers should review printhead technology, available ink layers, supported product dimensions, height compensation, 360-degree coverage, positioning accuracy, setup flexibility, safety functions, quality inspection, delivery, and technical service. The NC-Cylinder Elf-IV-C combines three Ricoh Gen5i printheads with 4-color, white, and varnish printing for cylindrical applications.

What to Check Before Replacing Existing Equipment

A practical replacement assessment should begin by matching the new machine with the products, artwork, and production volume already handled by the current printer. The following points help identify whether the equipment is a genuine production upgrade rather than simply a newer model.

• Print system: Confirm the printhead arrangement and whether the machine can apply color, white, and varnish layers in the required sequence.
• Product compatibility: Check printable length, diameter, surface shape, and the range of height differences supported by the machine.
• Full-surface production: Compare helical or rotary printing methods, especially when seamless 360-degree decoration is needed.
• Setup and protection: Review jig adjustment, automatic measurement, printhead capping, and anti-collision functions.
• Supplier service: Include inspection procedures, lead time, installation guidance, spare-parts support, and remote troubleshooting in the purchase decision.

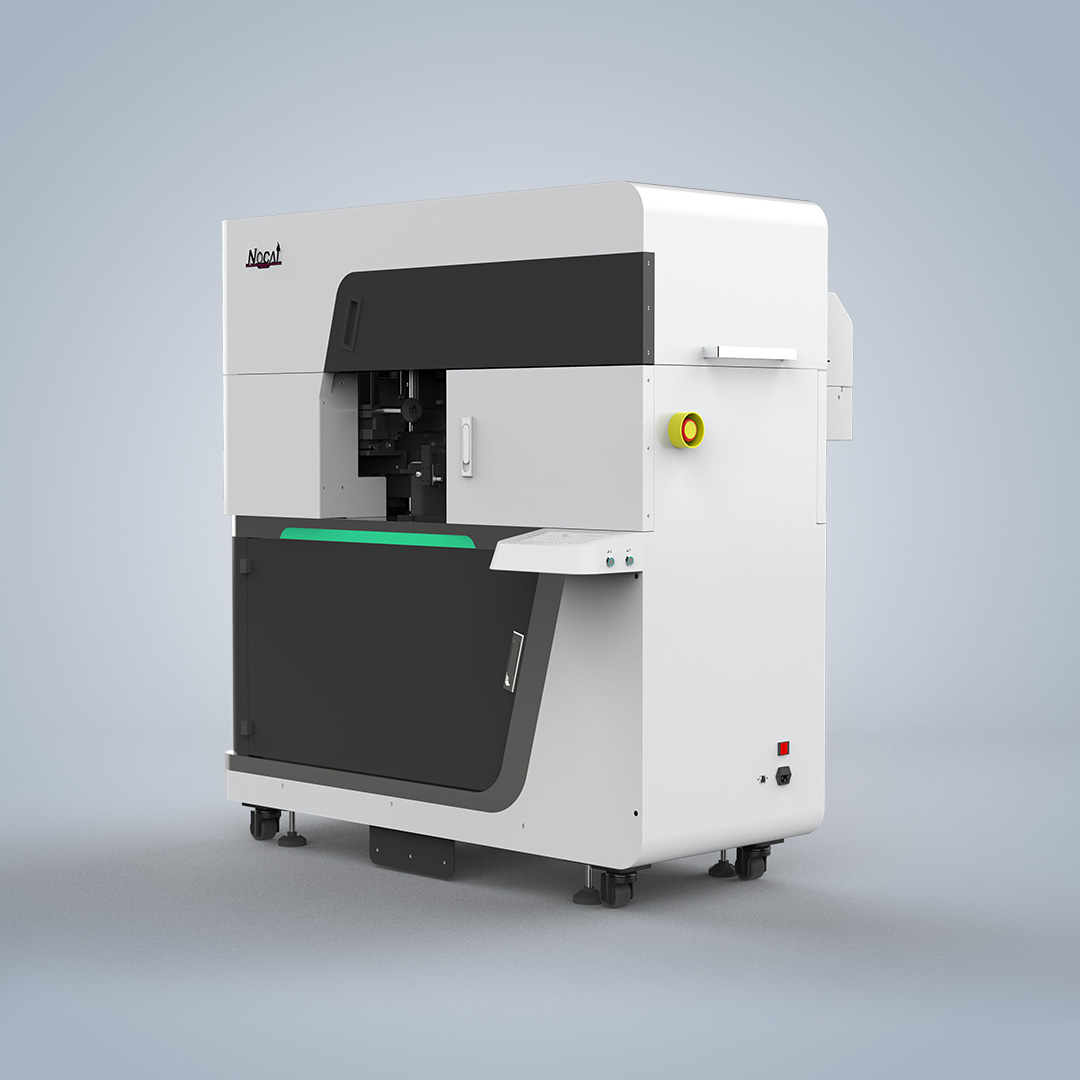

NC-Cylinder Elf-IV-C: Main Technical Capabilities

Printhead and ink-layer configuration

The NC-Cylinder Elf-IV-C uses three Ricoh Gen5i printheads and is designed for 4-color, white, and varnish output. This combination supports colorful graphics, white underprinting on darker materials, and a varnish layer when a protective or enhanced-finish effect is required. When comparing replacement equipment, buyers should verify that the alternative machine can produce the same combination of layers without adding extra manual operations.

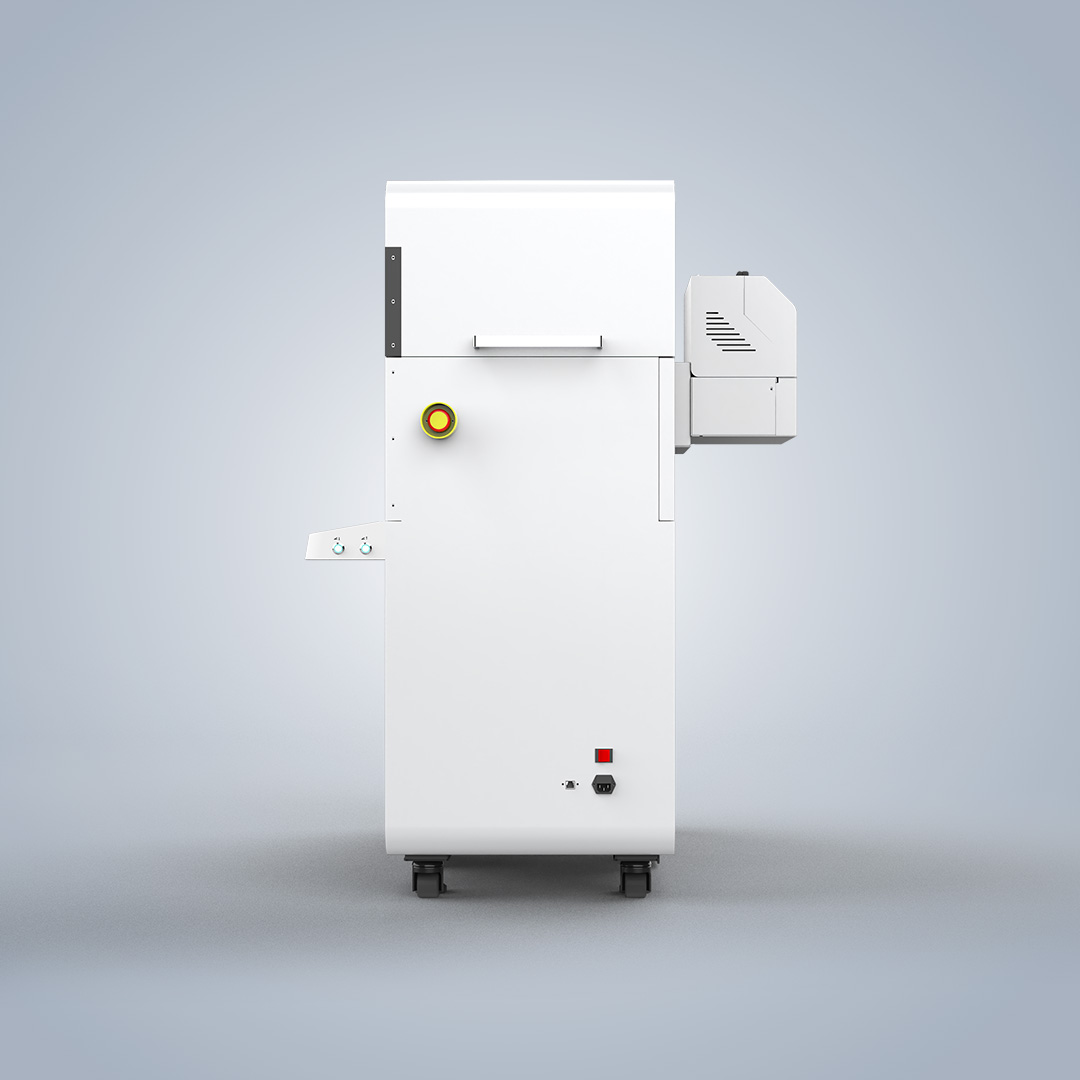

Dimensions and surface variation

Product size is a key replacement criterion. The stated printable length is 80–280 mm, while supported diameters range from 45–160 mm. The printer also accommodates height variations of 2–13 mm. These specifications can be relevant for Cola cups, sports bottles, thermal flasks, wine bottles, electronic housings, and other cylindrical products with different dimensions.

Positioning for changing geometries

Automatic laser measurement is used to identify the product profile and assist with positioning. Adjustable tilt control can change the printing angle according to the workpiece shape, helping the system address inclined surfaces and variations in product height. During a machine comparison, this function should be tested with representative products rather than evaluated only from a specification sheet.

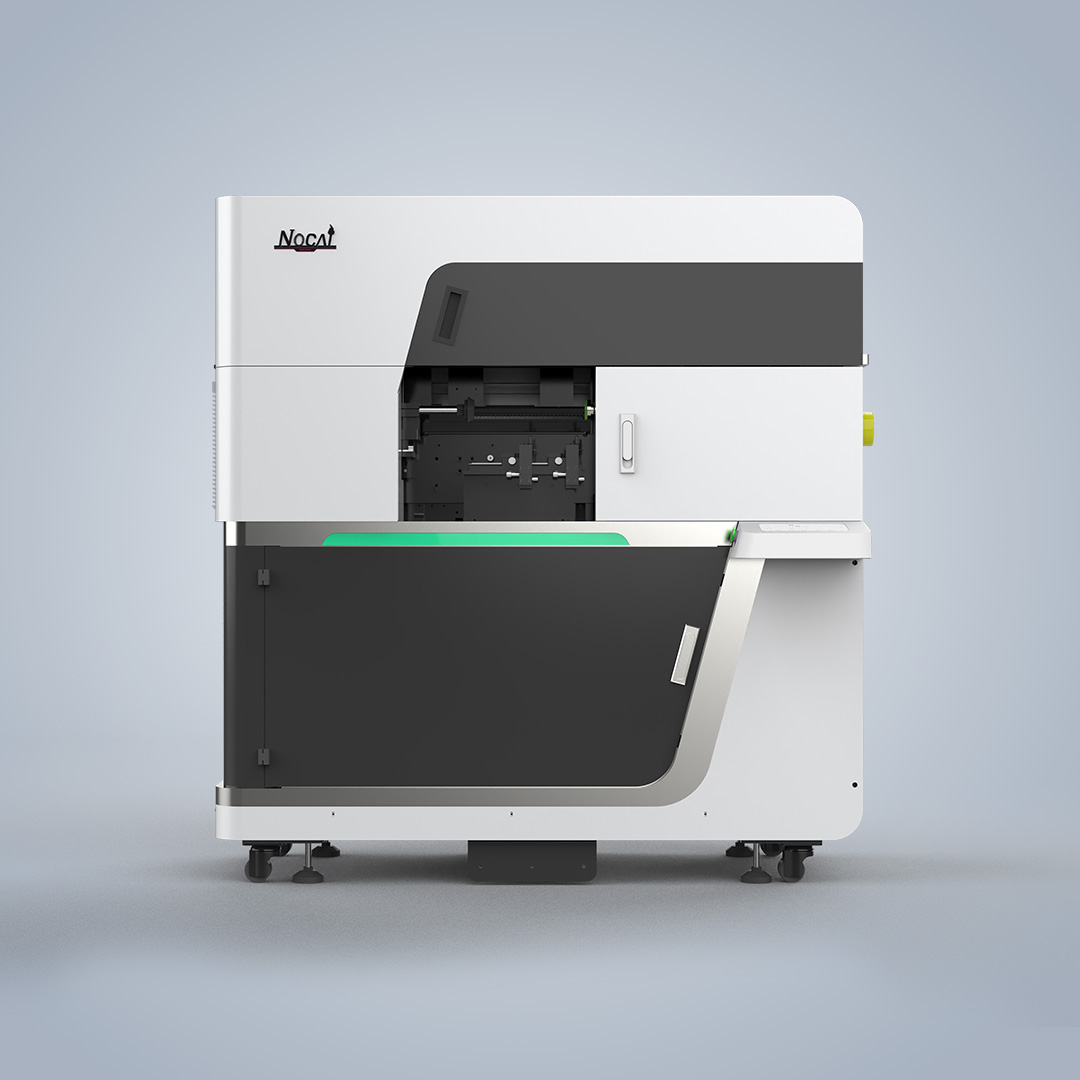

Helical 360-degree printing

The helical printing process is intended for continuous decoration around cylindrical items. It can print white, color, and varnish layers simultaneously over a 360-degree area, with a stated output speed of up to 30 seconds per unit. For an accurate speed comparison, use the same image coverage, resolution, number of ink layers, and product size on both the existing and replacement printers.

Workflow, Setup, and Machine Protection

Changeover time can influence total productivity as much as nominal print speed. The NC-Cylinder Elf-IV-C uses multi-diameter cylindrical jigs, and its adjustable jig includes scale markings to support repeatable setup. A lifting ink station provides printhead capping protection, while an infrared anti-collision sensor is designed to stop carriage movement if contact is detected.

These features should be compared with the operator requirements of the existing production line. Buyers can assess how quickly operators can exchange jigs, position different cup sizes, clean the system, and resume printing after a changeover.

Application and Supplier Evaluation

Nocai presents drinkware printing solutions for stainless steel, plastic, and glass. Listed applications include sports bottles, thermal flasks, promotional products, and customized gifts. These product categories provide a useful trial set when determining whether a replacement printer can support the same material mix and commercial orders.

The company reports a TUV certificate for the NC-UV0609PROII and CE certification for several listed models, including NC-UV0406 and NC-CylinderEIr-ll. It also describes cooperation with agents or sole agents in India, Poland, Turkey, Malaysia, Indonesia, and Korea. Customer comments cited by the company refer to machine stability, print quality, and after-sales assistance.

Replacement Comparison Checklist

Frequently Asked Questions

What should be compared first when replacing a Cola cup UV printer?

Start with the printhead configuration, required ink layers, printable dimensions, height variation, positioning method, and 360-degree coverage. These specifications determine whether the new machine can handle current products and artwork.

Is the NC-Cylinder Elf-IV-C suitable for inclined cylindrical products?

According to the listed product information, automatic laser measurement supports positioning across height variations of 2–13 mm. Adjustable tilt control changes the printing angle to accommodate product geometry and inclined surfaces.

What purchase and service terms are listed?

The stated minimum order is one unit, with delivery listed at 5–7 days. Quality procedures include 100% inspection and an aging test. Available after-sales resources include online support, video calls, remote control, user manuals, installation videos, and videos explaining spare-part replacement. Nocai describes its business model as covering full industrial chain operations, distribution, and direct sales.

Conclusion

The best replacement decision should be based on the entire production workflow instead of speed alone. Compare printhead and ink-layer performance, supported diameters and lengths, height compensation, laser positioning, helical 360-degree output, jig adjustment, printhead protection, inspection standards, delivery arrangements, and technical assistance.

The NC-Cylinder Elf-IV-C is listed with a minimum order quantity of one unit, a 5–7 day delivery period, 100% inspection, and aging testing. For technical specifications or support, contact nc05@gznuocai.com.

About Nocai

Guangzhou Nuocai Digital Products Co., Ltd., also known as Nocai, is a high-tech company focused on digital inkjet printing technology. Its activities cover research and development, printer design, manufacturing, sales, and after-sales service. The company reports more than 50 professional R&D engineers and designers, five production lines, monthly production of approximately 500 units, and annual capacity of about 6,000 units.

Its listed credentials include ISO certificate 87525Q0164R0M for the design and production of digital printers and CE certificate TCT2292A0721599 for specified models.
