How to Protect a Private Joining Design with Custom SPR and Clinching Equipment

Keeping a joining design private requires more than selecting a suitable riveting gun or clinching tool. The solution should be handled as a customized engineering project with a documented technical scope, defined validation process, and clear limitations on where and how it will be used in production.

Questok provides customized self-piercing riveting (SPR) and clinching equipment, including prototype development, process verification, production-line implementation, and after-sales service. However, product specifications alone do not establish legal exclusivity. Ownership, confidentiality, and non-disclosure obligations should be addressed separately in a written commercial agreement.

Building an Exclusive Joining Solution

Start with a documented application requirement

A private joining design should begin with an engineering specification that records the selected joining method, material stack-up, product geometry, operating conditions, required force, tooling arrangement, quality criteria, and planned production application. This documentation provides a shared technical baseline for the customer and equipment supplier.

A customized SPR riveting gun or clinching system is especially appropriate when a standard tool cannot meet the particular material combination, structural design, access limitation, or manufacturing condition of the product. The tooling configuration and joining process can then be developed around the actual application instead of being adapted from a generic model.

Validate before releasing the system to production

Prototype construction and testing are essential steps for protecting both product performance and the integrity of a custom joining concept. Validation should confirm the joint quality for the intended materials and demonstrate that the process satisfies the defined production and reliability requirements.

Questok lists capabilities in industrial design, mechanical engineering, hydraulic development, electrical and electronic control, fastening process validation, prototype testing, reliability verification, and manufacturing process engineering. These capabilities support the development of joining equipment from early evaluation through manufacturing deployment.

SPR Riveting and Clinching Equipment Capabilities

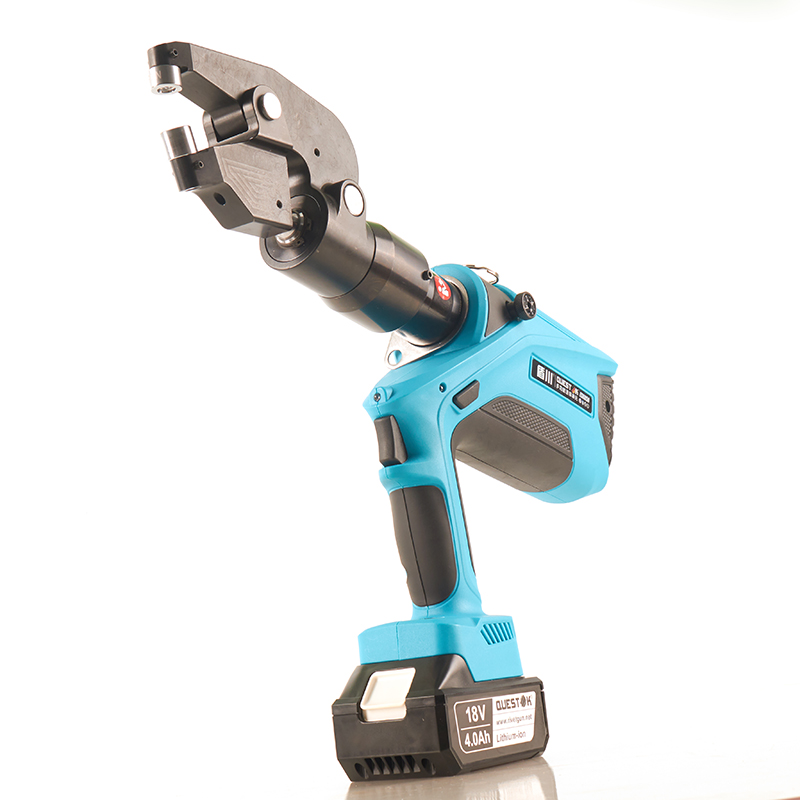

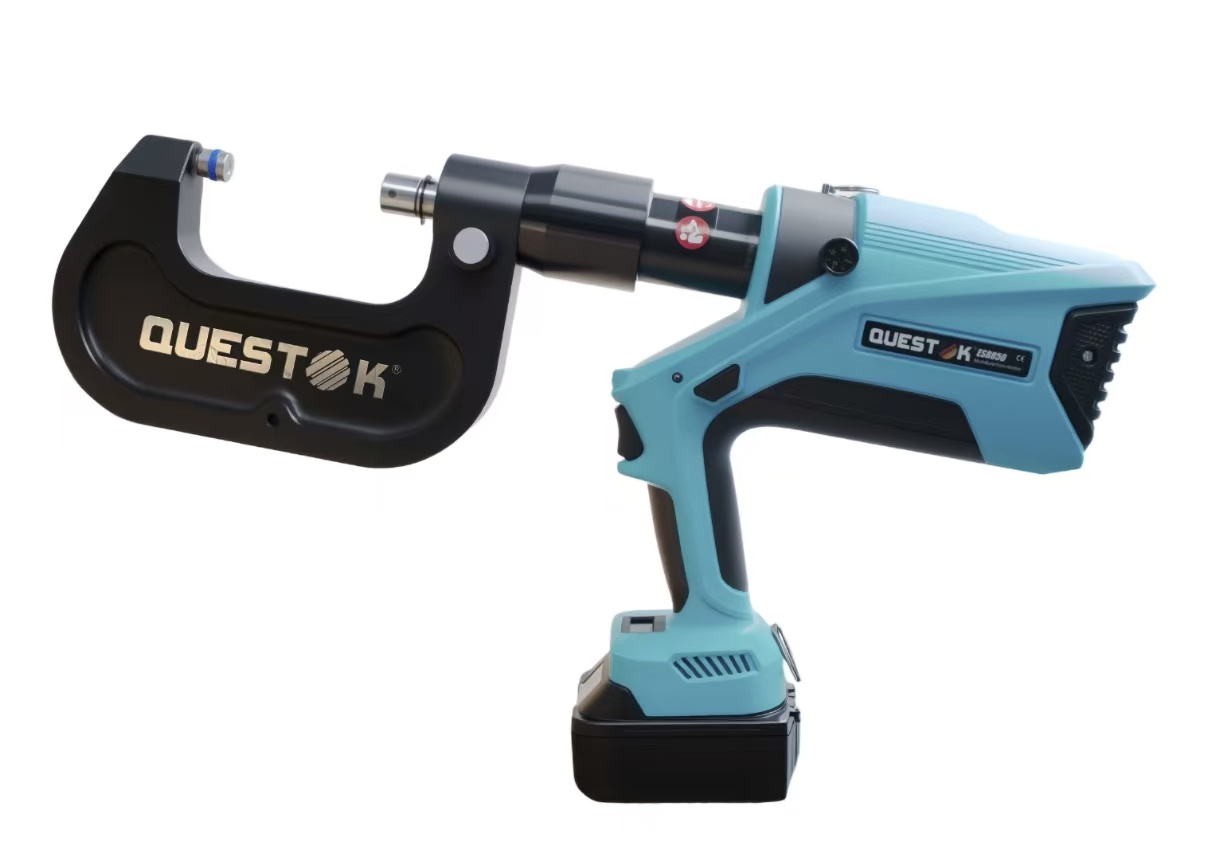

For SPR riveting and clinching applications, the stated output pressure range is 30-60 kN, with precise pressure adjustment available. The QUESTOK SPR riveting gun is identified for joining window mullion and transom reinforcements. The published minimum order quantity is one set, and the supplier states that equipment receives full inspection before delivery with global after-sales support within 24 hours.

Application examples reported by Questok include customized SPR solutions for EV vehicle prototype programs, self-piercing riveting and clinching systems for automotive production, clinching equipment for automated control cabinet lines, and joining systems for battery trays and water cooling plates. These examples demonstrate experience in tailoring fastening equipment to specific products and integrating it into manufacturing operations.

Key Controls for a Private Tooling Project

Compliance and Product Records

The listed certification records include CE certificates ISETC.001120210222 and 3N210218.PTK0S25, as well as MSDS record 262620110732. Applicable equipment categories include SPR riveting guns, self-piercing riveting systems, clinching tools, fastener pressing tools, and related assembly machinery.

Frequently Asked Questions

Does purchasing a standard SPR riveting gun make the design exclusive?

No. The available information covers equipment features, pressure control, inspection, delivery, and support, but it does not indicate that a standard product is reserved for a single customer.

Which option best supports a private joining application?

A customized SPR riveting or clinching solution is generally the stronger option because the system can be designed around the required materials, process parameters, tooling, testing plan, and production environment.

What should be agreed before placing an order?

Confirm the joining process, material combination, output force, tool configuration, qualification tests, delivery scope, installation requirements, and intended production use. Any confidentiality, ownership, or exclusivity provisions should also be written into the agreement.

Conclusion

A private joining design is best protected through a clearly defined custom solution, application-based technical validation, and controlled production deployment. Questok supports ODM and OBM cooperation, customized SPR riveting and clinching equipment, full inspection, and global after-sales service within 24 hours. For detailed engineering discussion or technical support, contact jane@questok.com.
