How to Select a CNC Side Hole Drilling Machine for Precise Cabinet Production

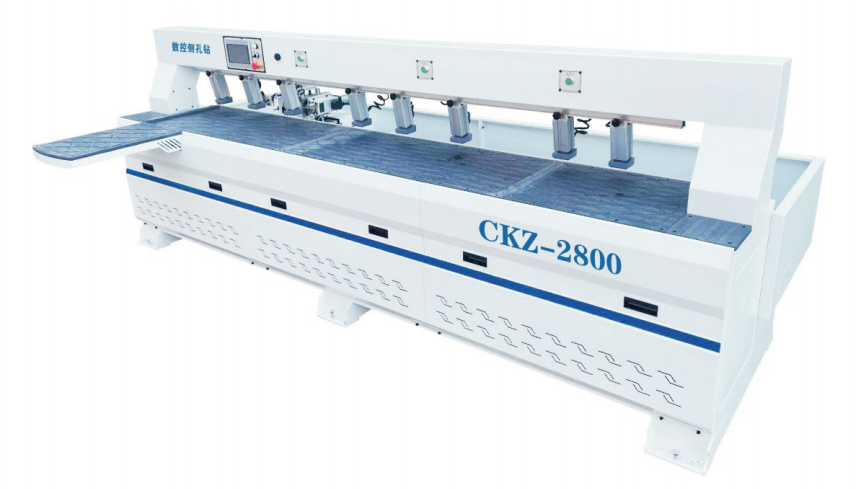

Selecting a CNC Side Hole Drilling Machine requires more than checking spindle power. Cabinet manufacturers should compare the required panel size, working stroke, positioning system, motor configuration, utilities, machine footprint, and quality-control process. The CNC Side Hole Drilling Machine supplied by Foshan Sun Hunt provides a 2800 mm working stroke, precision helical rack transmission, dual 7.5 kW servo motors, and two 2.2 kW spindle motors for consistent, repeatable cabinet drilling.

Selection Priorities at a Glance

• Match the processing range to the workpiece: the machine offers a 2800 mm working stroke and measures 3400 x 1800 x 1260 mm overall.
• Review the motion and drilling components, including the precision helical rack, 25 mm guide rail, dual servo motors, and dual spindle motors.
• Prepare the installation utilities in advance: the specified setup uses 380 V three-phase power at 50 Hz and requires 0.6-0.8 MPa air pressure.
• Consider the production application. CNC side-hole drilling is suitable for panel furniture, cabinets, and customized home-furnishing components that demand stable hole positioning.

How the Machine Supports Drilling Accuracy

Repeatable cabinet drilling relies on accurate machine travel, secure material positioning, and steady spindle performance. This configuration uses a precision helical rack transmission together with a 25 mm guide rail to support controlled movement. Two 7.5 kW servo motors manage machine-axis motion, while two 2.2 kW spindle motors provide the stated drilling drive capacity.

Before placing an order, compare the 2800 mm working stroke with the longest cabinet rails, side panels, or other components in the production schedule. The machine footprint is 3400 x 1800 x 1260 mm, and its listed weight is 600 kg. The installation plan should include room for loading, unloading, operator access, and material movement around the equipment.

Site and Utility Requirements

Electrical and pneumatic compatibility should be confirmed before delivery. The specified machine operates on 380 V, three-phase power at 50 Hz and needs an air supply between 0.6 and 0.8 MPa. The frequency converter power is 2.2 kW. Verifying these conditions at the workshop can help prevent commissioning delays and ensure that the machine runs under the intended operating conditions.

Testing and Production Validation

Foshan Sun Hunt reports that each machine undergoes precision calibration and extended load-running tests before shipment. The inspection process covers mechanical clearances, positioning accuracy, and control-program performance. The company also states that surface defects and concealed performance issues are handled through its QC Inspection System.

Reference projects can also help buyers judge application suitability. Sun Hunt supplied 19 machines for a wooden door factory production line in India. According to the customer feedback provided, the line achieved stable operation, fewer failures, lower labor costs, and improved product quality. The company also planned a 10-machine wood-processing line for a UAE factory, where the customer reported dependable operation, strong productivity, and responsive after-sales service.

Specification Checklist for Buyers

Frequently Asked Questions

Which specifications should be confirmed before ordering?

Review the 2800 mm working stroke, 3400 x 1800 x 1260 mm machine dimensions, 380 V three-phase electrical supply, 50 Hz frequency, 0.6-0.8 MPa air pressure, and the available workshop space. These details should correspond to both the workpieces and the site infrastructure.

Why is this configuration suitable for repeatable cabinet drilling?

The machine combines helical rack transmission, 25 mm guide rails, servo-controlled movement, and dedicated spindle motors. According to the manufacturer, calibration and extended load testing are completed before shipment, helping verify motion and drilling performance.

What technical assistance is available after purchase?

Support includes online video or voice guidance, installation tutorials, and ongoing technical assistance. Once a fault is confirmed and the required part is identified, spare parts can be arranged for international express delivery within two working days. The warranty lasts one year, excluding consumables and damage resulting from incorrect operation.

Conclusion

This CNC Side Hole Drilling Machine is a practical option when its 2800 mm working stroke, motion system, power requirements, air pressure, and footprint fit the cabinet production environment. Foshan Sun Hunt accepts orders starting from one set, lists a standard delivery time of 25 days, and can provide non-standard machines or complete production-line solutions. Its services include online technical support, spare-parts assistance, machine modifications, function upgrades, and control-system optimization. For a detailed proposal or technical support, contact vincent@fsshmachine.cn.
