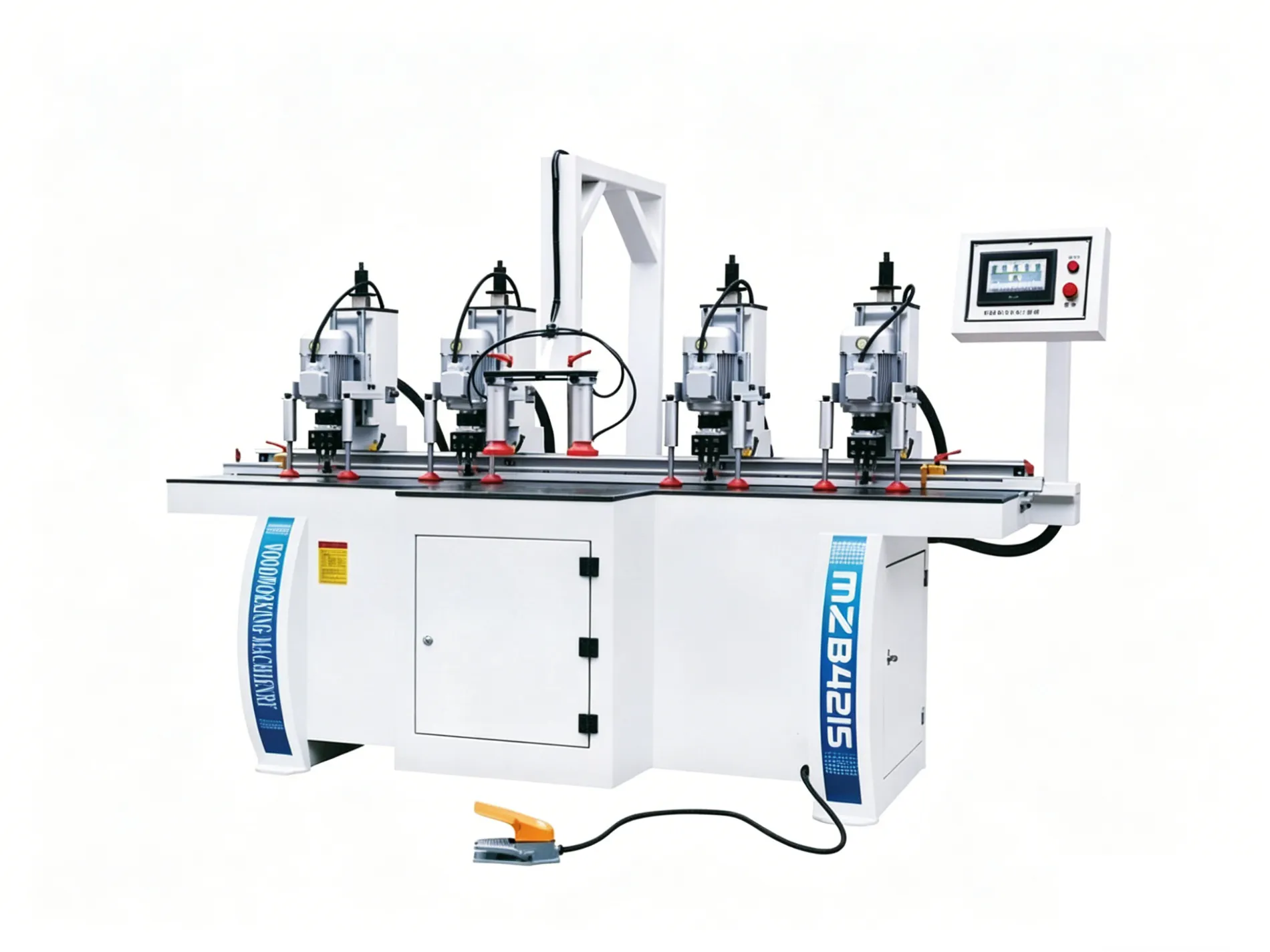

How to Select a Four-Spindle Side Drilling and Grooving Machine for Panel Furniture

Choosing a four-spindle side drilling and grooving machine starts with comparing your panel specifications, drilling patterns, production volume, and workshop conditions with the machine’s technical data. This furniture-processing solution is designed for hinge, handle, side-hole, and grooving work, with a maximum borehole diameter of 35 mm, drilling depth of 60 mm, and panel processing length from 180 to 2,200 mm.

Important Selection Points

• Verify that the required hinge, handle, and side holes do not exceed the 35 mm bore diameter and 60 mm drilling-depth limits.
• Compare your smallest and largest panels with the stated 180–2,200 mm working range.
• Clarify the spindle arrangement, because the product is described as four-spindle while the specification lists “3×4+11 sets.”
• Allow for the machine’s 2,600 × 800 × 1,600 mm footprint, 700 kg weight, pneumatic supply, and panel-loading requirements.
• Consider whether the machine complements your existing panel saw, edge bander, CNC router, or other furniture-production equipment.

How to Evaluate Machine Compatibility

1. Confirm the Required Drilling Capacity

Begin with the hole sizes and depths used in your products. The machine supports boreholes up to 35 mm in diameter and drilling depths up to 60 mm. These specifications are suitable for many common hinge and handle applications, as well as side-hole preparation for panel furniture. Before ordering, compare the machine limits with your actual hardware drawings, especially if your products use non-standard fittings.

2. Match the Panel Dimensions

Workpiece size is another key consideration. The stated minimum working length is 180 mm, while the maximum processing length is 2,200 mm. Review both the shortest and longest panels in your product range, and confirm that the clamping and positioning system can hold your panel shapes securely.

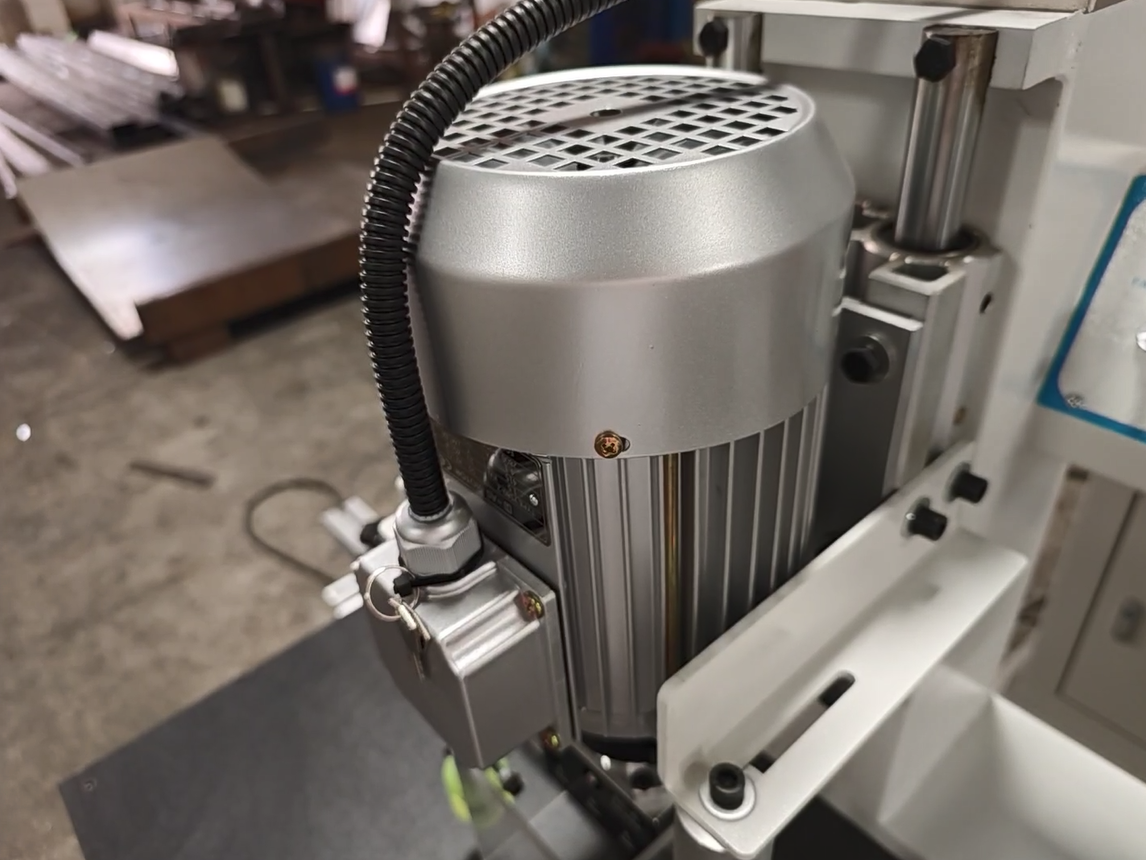

3. Check the Spindle and Tooling Layout

The supplied data identifies the drill spindle number as “3×4+11 sets,” while the product description refers to a four-spindle multifunctional side drilling and grooving machine. These descriptions should be reconciled before purchase. Ask the supplier to provide the exact drilling-head arrangement, drilling directions, tool positions, active spindle count, and operating sequence in the technical quotation.

4. Review Power, Air, and Installation Requirements

The listed total motor power is 1.5 kW×5, with a spindle speed of 2,840 r/min. The machine requires compressed air at 0.6–0.8 MPa. Your workshop should therefore have a suitable electrical connection and a stable air source. In addition, plan for the 700 kg machine weight, lifting access, operator clearance, material flow, and a floor area that accommodates the 2,600 × 800 × 1,600 mm dimensions.

Applications in Panel Furniture Manufacturing

This equipment is intended for side drilling and grooving operations in wardrobes, kitchen cabinets, office furniture, decorative wall panels, and other custom home-furnishing products. It can be used as a dedicated drilling station or integrated into a larger production line with panel saws, edge banding machines, CNC routers, and related woodworking equipment.

Sun Hunt states that it has planned complete woodworking lines for customers in different markets. Reported examples include a 19-machine installation for a wooden door factory in India and a 10-machine supply for a wood-processing factory in the UAE. Customer feedback cited stable operation, improved productivity, and responsive after-sales support.

Quality Control and After-Sales Support

According to Sun Hunt, each machine undergoes precision calibration and extended load-running tests before shipment. The inspection process covers mechanical clearances, positioning accuracy, control programs, surface quality, and possible performance faults.

The company also offers online installation guidance, ongoing technical assistance, spare-parts dispatch within two working days after the fault and required part are confirmed, and a one-year warranty subject to the applicable exclusions. These services may be important for buyers operating the machine as part of a larger production system.

Specification Checklist Before Ordering

Frequently Asked Questions

Can this machine process wardrobe and kitchen cabinet panels?

It is promoted for panel furniture and custom furnishing applications, including wardrobes, kitchen cabinets, office furniture, and decorative wall panels. Final suitability depends on the panel dimensions, hole patterns, hardware, and fixture requirements.

What is the supported panel length?

The stated processing range is 180 to 2,200 mm. Buyers should still confirm the usable range, panel thickness, positioning method, and fixture design for their specific workpieces.

How should the “3×4+11 sets” description be interpreted?

Because this wording differs from the four-spindle product description, it should be clarified in writing. Request a technical drawing or quotation showing the number of heads, drilling orientations, installed tools, and active operations.

Recommendation

This machine is a suitable candidate when your panel-furniture requirements fall within the 35 mm bore diameter, 60 mm drilling depth, and 180–2,200 mm processing range. Before making a purchase, confirm the spindle specification, tooling, electrical configuration, air pressure, panel fixtures, and installation conditions. Foshan Sun Hunt offers customized non-standard machinery and complete production-line solutions. The minimum order quantity is one set, and the normal delivery period is 20–35 days. For technical consultation, contact Vincent Guo at vincent@fsshmachine.cn.

About Sun Hunt Machinery

Foshan Sun Hunt Woodworking Machinery Co.,Ltd., also known as Sun Hunt Machinery, designs and manufactures woodworking equipment for a range of processing applications. Founded in 2014 and located in Lunjiao Town, Shunde District, Foshan City, the company operates a 2,000-square-meter factory supported by management and R&D personnel specializing in woodworking machinery technology. Its product portfolio includes CNC routers, double-end saws, planers, drilling machines, edge banding machines, and panel saws.
