How to Select the Right Double-end Saw Line Capacity for Heavy-duty Precision Cutting

Selecting the right Double-end Saw Line for demanding production starts with the application, not a generic capacity label. Material dimensions, cutting sequence, required accuracy, production volume, conveyor speed, and workshop layout should all be reviewed before the machine is specified. Because the available product data does not include a fixed throughput rating, heavy-duty users should confirm the complete process through a technical assessment with the manufacturer.

Selection Priorities for Heavy-duty Applications

• Identify the largest material dimensions, cutting sequence, target tolerances, and expected workload before choosing the line configuration.
• Give priority to servo-driven width adjustment, ball screws, touch-screen operation, positioning equipment, and variable conveyor speed when repeatable cutting is important.
• Check that the installation area can accommodate the listed machine dimensions of 3800 × 2600 × 1900 mm and the approximate machine weight of 2000 kg.
• Use the customization option to adapt the line to different materials, sizes, and process conditions. The minimum order quantity is one set.

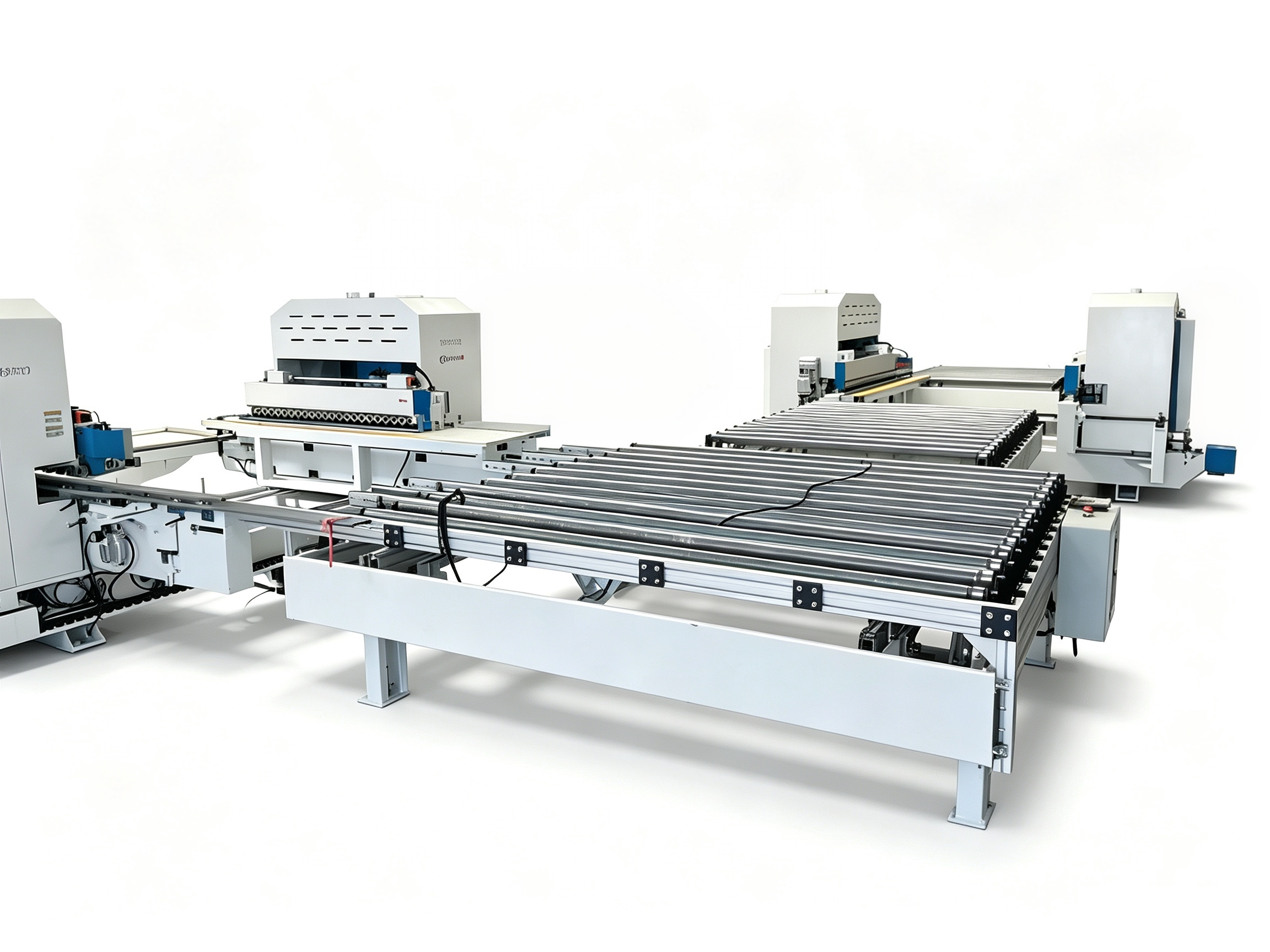

How the Double-end Saw Line Is Configured

This line combines upper and lower sawing to process material from two directions within one production arrangement. The upper electric spindle is rated at 4 kW, and the lower spindle is rated at 2.2 kW. Both spindles run within a range of 6000–8000 rpm. The lower saw is equipped with an explosion-proof edge, while frequency-converter control allows the operating speed to be adjusted for different cutting conditions.

Adjustment and Positioning System

Width adjustment is managed through a servo motor, ball screw, and touch-screen interface. This combination enables more controlled dimensional changes and makes it easier for operators to establish repeatable settings. Material cutting adjustment uses two 550 W servo motors with ball screws, while two 750 W electric lifting units provide material pressing.

Material feeding is supported by a 2.2 kW conveyor motor with adjustable speed. A positioning device is installed at the feeding point to help establish a consistent starting position. The supplied handling arrangement also includes four sets and three sets of auxiliary tables.

How to Match Capacity to the Production Requirement

Capacity should be evaluated by examining the largest workpiece, required cutting accuracy, feeding approach, and desired operating speed. Motor power alone cannot be used to calculate output. The current product information does not specify throughput, maximum material thickness, or maximum cutting width, so these values should be confirmed during a customized technical review.

For a heavy-duty installation, the buyer should provide material type, maximum and minimum dimensions, daily production targets, cutting tolerances, operating schedule, and upstream or downstream equipment details. These inputs allow the manufacturer to recommend suitable settings and confirm whether the standard arrangement needs modification.

Applicable Industries and Production Experience

The Double-end Saw Line can be used in panel furniture and custom home furnishing production, including wardrobes, kitchen cabinets, office furniture, and decorative wall panels. It is also suitable for wood door and window manufacturing, where dimensional consistency and dependable cutting are essential to the wider production process.

Sun Hunt has supplied a 19-machine production line to a wooden door factory in India and a 10-machine wood-processing line in the UAE. Reported customer feedback highlights stable operation, low failure rates, professional production-line planning, responsive support, and improved manufacturing performance. These projects reflect experience in both standalone machine supply and complete line development.

Technical Factors to Confirm Before Ordering

Frequently Asked Questions

Is a numerical capacity rating provided for this Double-end Saw Line?

No fixed throughput figure is included in the available specifications. Capacity should be established from material size, cutting conditions, feeding method, target speed, and the final customized configuration confirmed with the manufacturer.

Which components contribute to accurate cutting?

The servo motor and ball screw system support controlled width adjustment, while the touch screen provides an accessible operating interface. The feeding-point positioning device, servo-based cutting adjustment, variable-speed conveyor, and electric pressing system further support consistent processing.

Can the machine be configured for continuous heavy-duty production?

The product is described as a non-standard customized machine. Its dimensions, material handling, and processing functions can be reviewed for demanding applications. Buyers should provide material specifications, target dimensions, working hours, accuracy requirements, and expected production conditions for engineering confirmation.

Conclusion and Purchase Recommendations

The right Double-end Saw Line capacity is determined by the complete production requirement rather than spindle power or a general machine category. Confirm the material range, cutting sequence, accuracy target, feeding arrangement, available workshop space, and handling conditions before placing an order. Since the published data does not state a numerical output rating, throughput should be validated through a technical discussion instead of being estimated.

Foshan Sun Hunt supports non-standard customized machinery and complete production-line solutions. The listed minimum order quantity is one set, and the stated delivery time for this product is 35 days. For technical consultation or project support, contact vincent@fsshmachine.cn.
