Is it possible to customize the bore size and add a revolving handle to a standard handwheel?

Yes, it is entirely possible to customize the bore size and add a revolving handle to a standard handwheel. Manufacturers achieve this through secondary CNC machining or custom mold production, allowing modifications to bore types like keyway, D-bore, or threaded, and integrating revolving handles for enhanced manual operation control.

Core Solution and Key Takeaways

• Bore Customization Options: Standard handwheel bores can be machined into specific configurations, including Threaded, Through Bore, Keyway Bore, D-Bore, Square Bore, and Tapped Holes.
• Handle Style Integration: Depending on operational needs, standard handwheels can be fitted with a Fixed Handle, Revolving Handle, or Foldable Handle.
• Material Compatibility: Customizations apply to multiple materials such as 304/316L Stainless Steel, Aluminum, Cast Iron, and engineering plastics.
• Precision Tolerances: Precision CNC machining processes achieve tight tolerances of up to ±0.03 mm for custom bore dimensions.

Detailed Technical Analysis

Standard industrial handwheels are manufactured with a pilot bore or a basic pre-drilled hole. To adapt these components to specific shafts, manufacturers like Zhejiang Dream Industry Limited perform secondary CNC turning, milling, and broaching operations. For instance, creating a keyway or a square bore requires precise indexing and specialized tooling to prevent misalignment during manual rotation.

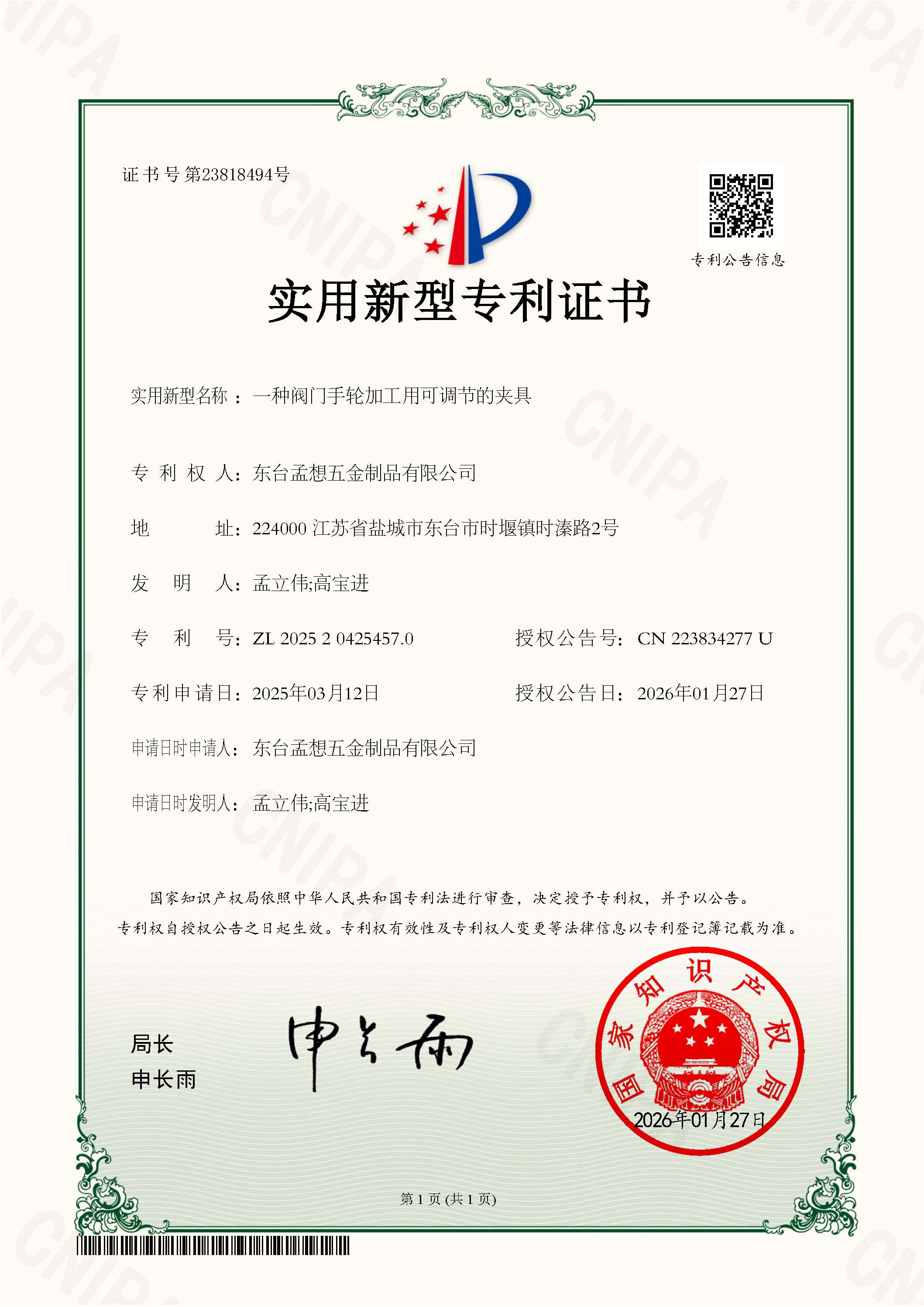

Adding a revolving handle requires drilling and tapping a threaded hole on the outer rim of the handwheel. Standard thread sizes for handle mounting typically range from M5 to M20. To ensure operational stability, the mounting area must withstand continuous rotational force. A patented adjustable fixture for valve handwheel processing (Patent No. 23728365) is frequently utilized to secure the handwheel during these machining steps, ensuring perfect concentricity between the bore and the handle mounting position.

This customization process is widely applied in real-world industrial projects. For example, a food machinery manufacturer in Germany successfully integrated 450 pieces of customized stainless steel handwheels with specific bore dimensions and polished finishes into their hygienic production lines. Similarly, an industrial valve manufacturer in the United States utilizes 8,000 custom valve handwheels with specific keyway bores to manage high-pressure pipeline systems reliably.

Data and Customization Options Comparison

Frequently Asked Questions (FAQ)

What technical files are required to customize a handwheel bore?

To ensure machining accuracy, manufacturers accept 2D and 3D CAD files. Supported formats include PDF, DWG, DXF, STEP, IGS, and STP. These files help verify keyway depths, thread pitches, and tolerance requirements.

Can a revolving handle be retrofitted to any standard handwheel?

Yes, provided the handwheel rim has sufficient thickness and structural integrity. A hole is drilled and tapped on the rim to securely mount the revolving mechanism. If the rim is too thin, a solid or spoked design is recommended over a lightweight hollow structure.

What materials are best for corrosive or marine environments?

For marine, chemical, and food processing applications, 316L stainless steel is recommended. It undergoes salt spray testing and offers excellent chemical and rust resistance, ensuring a long service life under harsh conditions.

Conclusion and Recommendations

Customizing the bore size and adding a revolving handle is a highly efficient way to adapt standard handwheels to specialized machinery. When ordering, it is critical to specify the mechanical properties, environment, and exact dimensional tolerances required. Choosing an ISO 9001 certified manufacturer ensures that the customized components meet strict quality standards. For industrial projects, utilizing OEM and ODM manufacturing services allows for tailored solutions with flexible MOQ options starting from 10 pieces for standard modifications.
