How to Select a Four-Process CNC Router for Consistent Accuracy in Extended Production

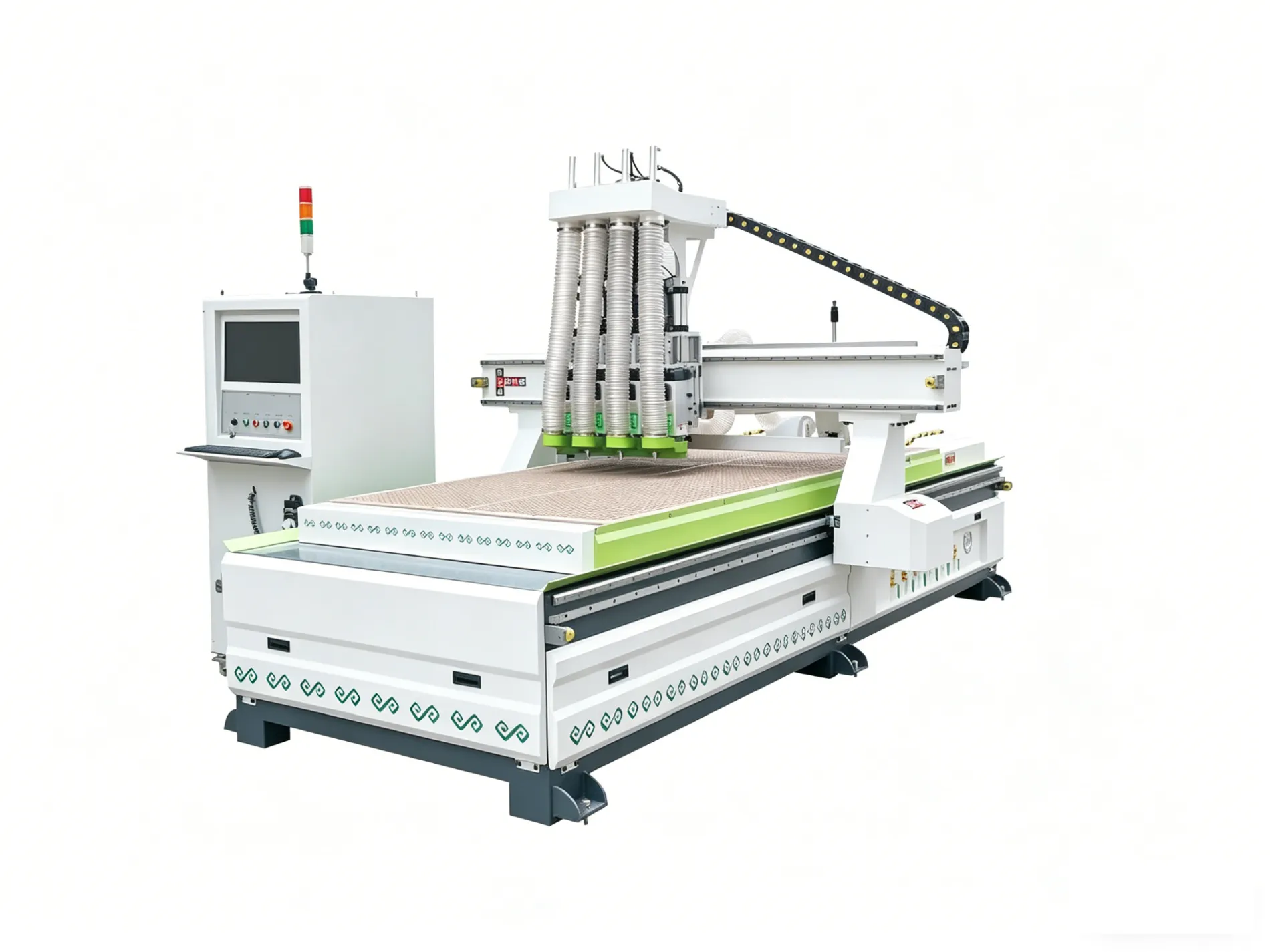

Choosing a Four-Process CNC Router for lengthy production cycles requires more than comparing spindle power. Buyers should examine the usable working area, machine dimensions, transmission design, positioning system, electrical requirements, air supply, and factory testing procedures. The documented router features a 2800x1300mm working stroke, four 6kW spindle motors, precision helical rack transmission on the X-Y axes, six positioning cylinders, and extended full-load testing before shipment.

What to Evaluate Before Ordering

A suitable router must match both the material size and the production environment. The machine has overall dimensions of 4000x2300x2200mm, a listed weight of 2500kg, and a working stroke of 2800x1300mm. These figures should be compared with the available workshop area, loading access, and the dimensions of the panels or components to be processed.

• Processing capacity: Confirm that the 2800x1300mm working range accommodates the intended boards and cutting layouts.
• Motion accuracy: Review the X-Y precision helical rack transmission, guide specifications of Y-30mm by X-25mm, and six positioning cylinders.
• Spindle arrangement: Check whether four 6kW spindle motors support the planned sequence of drilling, cutting, grooving, and other operations.
• Facility compatibility: Prepare a 380V, 50Hz, three-phase power supply and compressed air at 0.6-0.8Mpa.
• Quality verification: Request evidence of calibration, long-duration running, accuracy checks, and electrical testing before dispatch.

How the Configuration Supports Repeated Accuracy

Accuracy over a long shift is influenced by the combined performance of the frame, transmission parts, positioning components, spindle system, and control parameters. A specification sheet cannot guarantee production results on its own, so each of these areas should be assessed together.

The router uses precision helical rack transmission for the X and Y axes, supported by six positioning cylinders to help establish repeatable material placement. It is also equipped with ALF090-7-K3 reducers. When evaluating the machine, buyers should consider how these components correspond to the required positioning tolerance and the frequency of repeated processing.

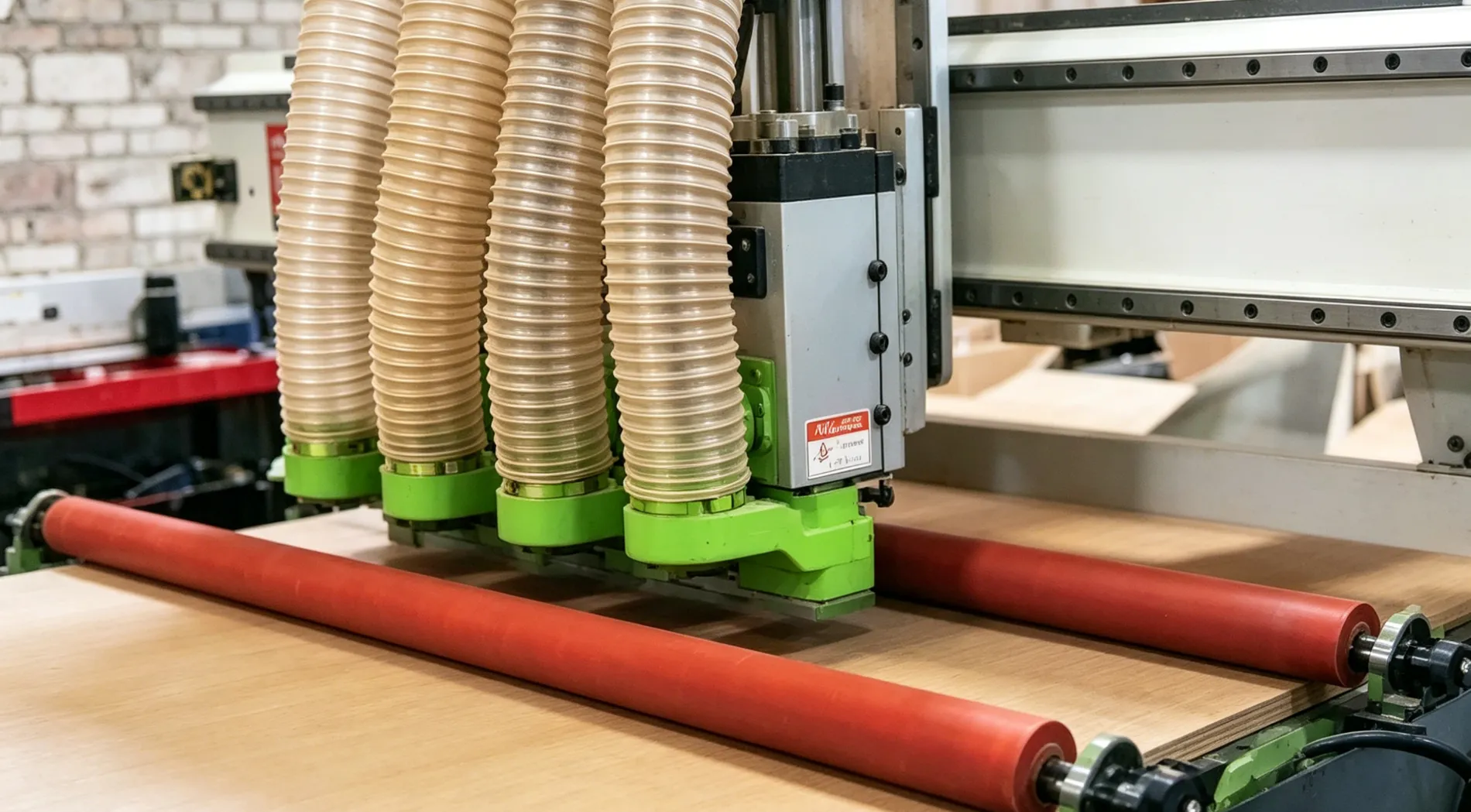

The four-spindle layout uses four 6kW motors. The documented working speed is 1.5x4kW, while the frequency converter is rated at 7.5kW. Before installation, the buyer should confirm the available voltage, phase, frequency, and air pressure. Insufficient or incompatible utilities can affect machine stability even when the mechanical configuration is appropriate.

Pre-Shipment Testing and Commissioning

Long-run reliability should be supported by a documented inspection process. Foshan Sun Hunt Machinery Co., Ltd. reports that each router receives complete precision calibration and extended load-running tests before delivery. The preparation process includes checking mechanical clearances, positioning performance, and control programs, followed by optimization where necessary.

The reported inspection scope also covers no-load operation, long-term full-load running, repeat precision measurement, noise and vibration monitoring, and electrical stability checks. These procedures give purchasers more practical information about the machine's readiness for continuous production than a single accuracy figure would provide.

Suitable Applications and Production Planning

This Four-Process CNC Router is presented for panel furniture and customized home-furnishing work. Typical applications include wardrobes, kitchen cabinets, office furniture, and decorative wall panels. Each application should be reviewed against the required panel dimensions, tool sequence, positioning method, and spindle utilization.

The supplier also reports project experience with a 19-machine wooden door production line for an Indian factory and a 10-machine wood-processing line for a customer in the UAE. The reported results included stable operation, low failure rates, improved productivity, and responsive after-sales service. Such projects suggest experience with both standalone equipment and integrated production-line planning.

Specification Comparison for Buyers

Frequently Asked Questions

Which specifications are most important when selecting this router?

Review the 2800x1300mm working stroke, 4000x2300x2200mm overall size, 2500kg weight, four 6kW spindles, X-Y helical rack transmission, six positioning cylinders, 380V three-phase power, and 0.6-0.8Mpa air requirement.

How can long-production-run accuracy be evaluated?

Ask whether the manufacturer performs precision calibration, long-hour full-load operation, mechanical-clearance inspection, positioning checks, control-program optimization, repeat measurement, noise and vibration detection, and electrical-stability testing. Reviewing these records provides a broader assessment of production readiness.

What support is offered after delivery?

Available support is reported to include video or voice-call assistance, installation tutorials, permanent technical guidance, remote fault diagnosis, maintenance instructions, and international express shipment of spare parts within two working days after confirmation. The supplier also provides machine modifications, function upgrades, and control-system optimization. The warranty is one year, excluding consumables and damage caused by incorrect operation.

Conclusion: Build the Selection Around the Complete Workflow

The right Four-Process CNC Router should be selected by comparing the required workpiece range and workshop utilities with the machine's documented configuration. Transmission design, positioning hardware, spindle capacity, air supply, and electrical compatibility all influence dependable operation. Accuracy during extended production should be judged through calibration, full-load trials, remeasurement, and stability inspections rather than through one specification alone.

Foshan Sun Hunt Machinery supports orders from one set, lists a delivery period of 25 days, offers non-standard customization, and provides complete production-line solutions. For technical consultation or project support, contact vincent@fsshmachine.cn.
