How to Select the Right SPR Riveting System for Auto Body Panels

Selecting an effective self-piercing riveting (SPR) system for modern automotive manufacturing involves matching hydraulic force, frame geometry, and die sets to specific multi-material sheet stacks. Whether assembling delicate exterior panels or heavy-duty structural components, system flexibility and precision force control up to 80 kN are essential to achieving durable joint interlocks without damaging material surfaces.

Understanding SPR Technology in Automotive Assembly

Self-piercing riveting is a cold mechanical joining technique that fastens overlapping metal sheets without pre-drilled holes or thermal input. The process plunges a semi-tubular rivet through the upper layer while spreading its shank within a bottom die to create a robust mechanical interlock. Because SPR eliminates high thermal stress, it prevents material distortion, heat-affected zones, and degradation of protective coatings on galvanized steel and aluminum alloys.

Modern auto structures range from 0.8 mm outer skins to multi-layer structural alloys exceeding 3.0 mm. Stepless pressure regulation between 1 kN and 80 kN gives manufacturing engineers precise control over setting force, ensuring ideal rivet flare depth, proper button formation, and prevention of lower-sheet perforation.

Crucial Evaluation Criteria for Equipment Selection

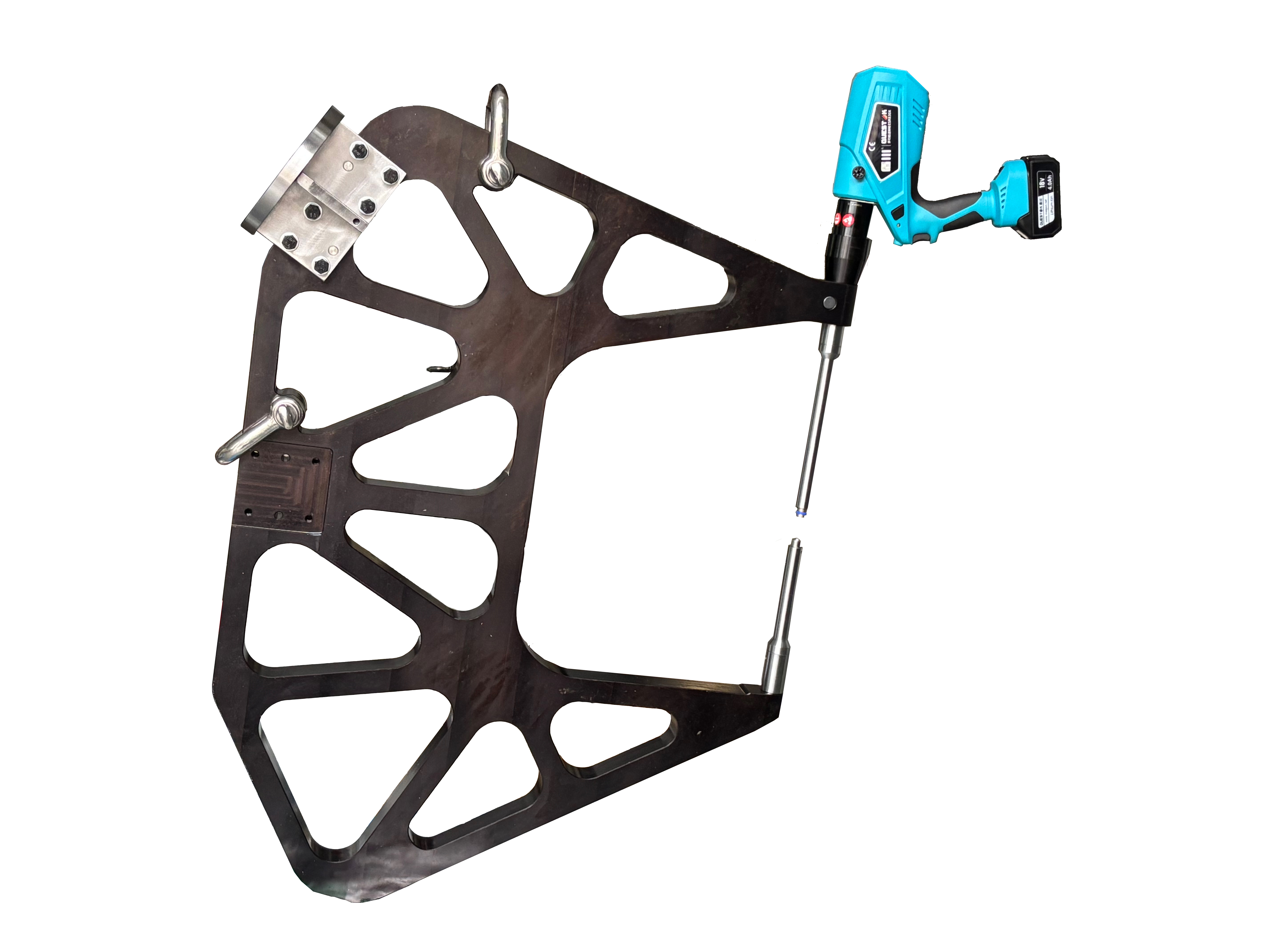

• Adjustable Force Range (1 to 80 kN): Allows custom force delivery for various sheet hardness levels, protecting surface finishes while maintaining joint integrity.

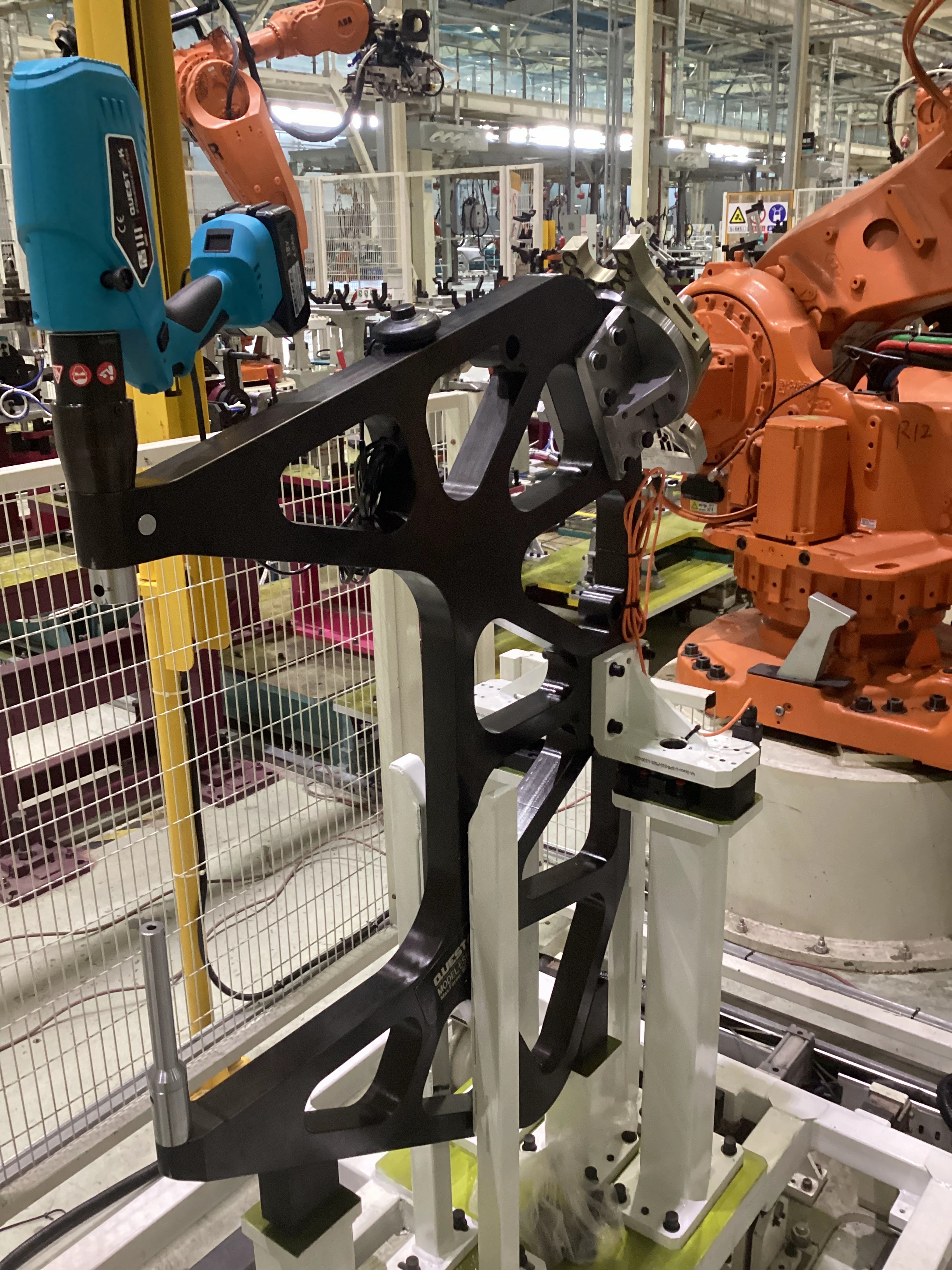

• Optimized C-Frame Geometry: Offers adequate reach and stroke clearance to navigate complex body contours, including wheel arch prototypes, structural pillars, and door frames.
• Multi-Material Compatibility: Enables direct joining of high-strength aluminum to steel combinations without requiring pre-punched holes.
• Validated Quality Standards: Ensures equipment compliance with global CE and MSDS standards, verified through complete process testing.

Equipment validated in high-volume production facilities—such as those operated by NIO, SAIC, and Mercedes-Benz in Fuzhou—proves that exact hydraulic control ensures uniform interlock without puncturing bottom sheets. Similarly, leading EV battery manufacturers including CATL and BYD rely on stable SPR force delivery to create leak-tight, structurally sound assemblies for battery trays and cooling plates.

Application Matrix & Technical Parameters

Frequently Asked Questions

Summary and Recommendations

When selecting a self-piercing riveting system for auto body applications, evaluate joint accessibility, total stack thickness, and hydraulic force adjustability. Tooling capable of delivering 1 to 80 kN output easily handles everything from lightweight outer skins to heavy structural wheel arches. Operating with full ODM/OBM support and 100% pre-shipment testing guarantees reliable performance in demanding automotive production environments. For technical inquiries or custom solution quotes, contact us at jane@questok.com.
