Sheet Metal Connection Tool Turnaround Times: Standard vs. Customized Lead Time Guide
In modern industrial assembly, turnaround speed and joining precision are critical factors when selecting production machinery. When sourcing a sheet metal connection tool, lead times depend primarily on whether your manufacturing line uses standard off-the-shelf equipment or requires tailored multi-material joining systems. For order quantities under 100 sets, standard connection tool configurations are ready for dispatch within 3 days. Conversely, customized models that require tailored joining dies, modified throat depths, or specific pressure settings between 30 kN and 60 kN carry a 15-day sample turnaround.
Understanding Electro-Hydraulic Press-Joining Principles

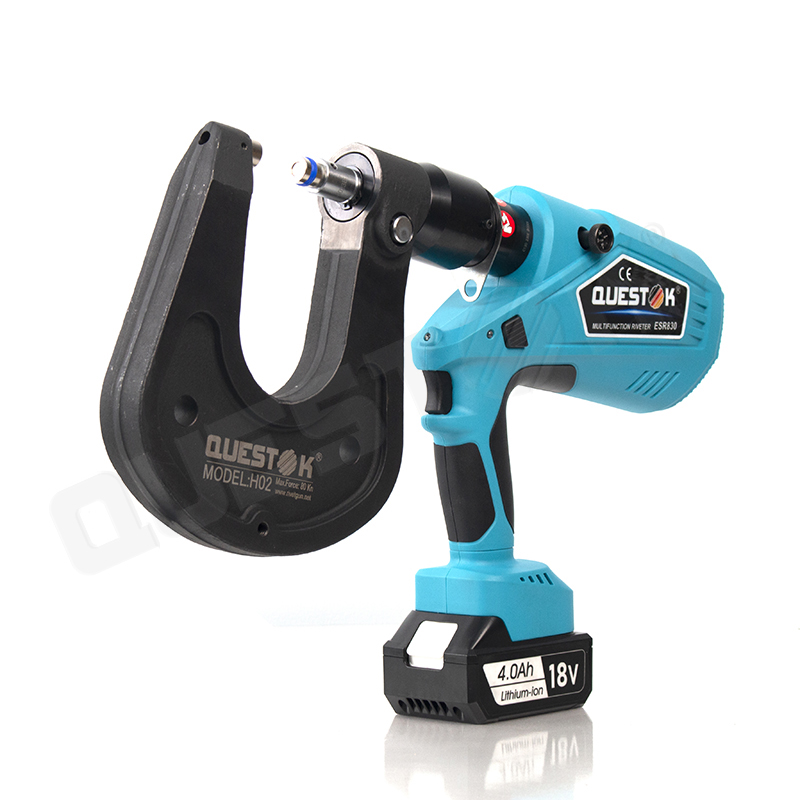

Driven by advanced electro-hydraulic mechanisms, sheet metal connection tools execute single-step mechanical clinching or fastening without thermal input or consumable hardware. Operating across an adjustable output pressure range of 30 kN to 60 kN, the equipment cold-forms metal sheets into a high-strength interlock without burning or damaging surface coatings. This chemical-free and thermal-free process is critical for maintaining corrosion resistance in galvanized steel applications, such as fixed smoke curtain installations and HVAC ductwork fabrication.
Key Industrial Applications & Case Highlights
Engineered joining tools are widely utilized across automotive manufacturing, EV battery tray production, solar panel frame fabrication, commercial white goods assembly, and building safety installations:
- Automotive Assembly: At Mercedes-Benz in Fuzhou, custom self-piercing riveting and clinching tools were deployed to join high-strength steel combinations along automated vehicle assembly lines.
- Control Cabinet Fabrication: Midea implemented specialized clinching systems for cabinet production, replacing traditional spot welding with a single-step mechanical joint that eliminates post-weld grinding and repainting.

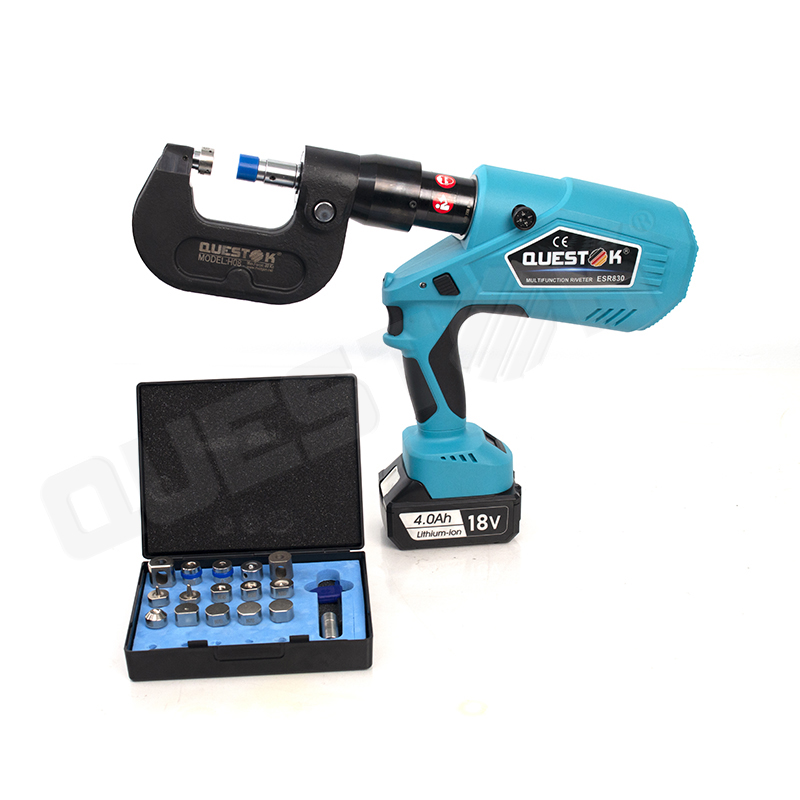

- Ventilation & Smoke Curtains: Precision pressure control prevents surface oxidation when joining galvanized sheet metals used in HVAC systems and smoke barriers.
Standard vs. Customized Tooling Comparison
The table below summarizes the operational and supply parameters for standard off-the-shelf units compared to custom-engineered configurations:
| Parameter / Requirement | Standard Model Solution | Customized Model Solution |
|---|---|---|
| Sample Delivery Time (< 100 sets) | 3 Days | 15 Days |
| Monthly Production Capacity | 800 Sets | 500 Sets |
| Output Pressure Adjustment Range | 30–60 kN (Standard Pre-set) | 30–60 kN (Custom Die Tailored) |
| Minimum Order Quantity (MOQ) | 1 Set | 1 Set |
| Quality Inspection Standard | 100% Full Inspection & Function Video Test | 100% Full Inspection & Material Analysis Test |
| Business Support Model | OBM / Direct Supply | ODM / Custom Integration |
Rigorous Quality Verification & Certification Standards
To guarantee operational reliability in demanding production environments, every connection tool undergoes stringent quality assurance. Units are subjected to 100% full inspection from raw component arrival through to final assembly verification. Pre-dispatch testing includes rigorous pressure stability evaluations and material joining trial runs. Systems carry international CE certifications (Certificate Numbers: ISETC.001120210222 and 3N210218.PTK0S25) and MSDS compliance (Certificate Number: 262620110732), verifying adherence to global electrical and mechanical safety standards.
Frequently Asked Questions (FAQ)
What factors impact the delivery schedule of a sheet metal connection tool sample?
Standard tool models ship within 3 days after payment confirmation for orders under 100 sets. If the application requires custom tooling geometry, modified arm throat depths, or specific pressure calibration, engineering development extends the sample lead time to 15 days.
How is connection quality verified prior to tool shipment?
Every tool undergoes 100% full inspection. Technicians execute operational tests across target material samples, record performance metrics, and generate test videos for client validation before dispatching the shipment.
Can the connection tool join coated or galvanized sheet metal without damaging the surface?

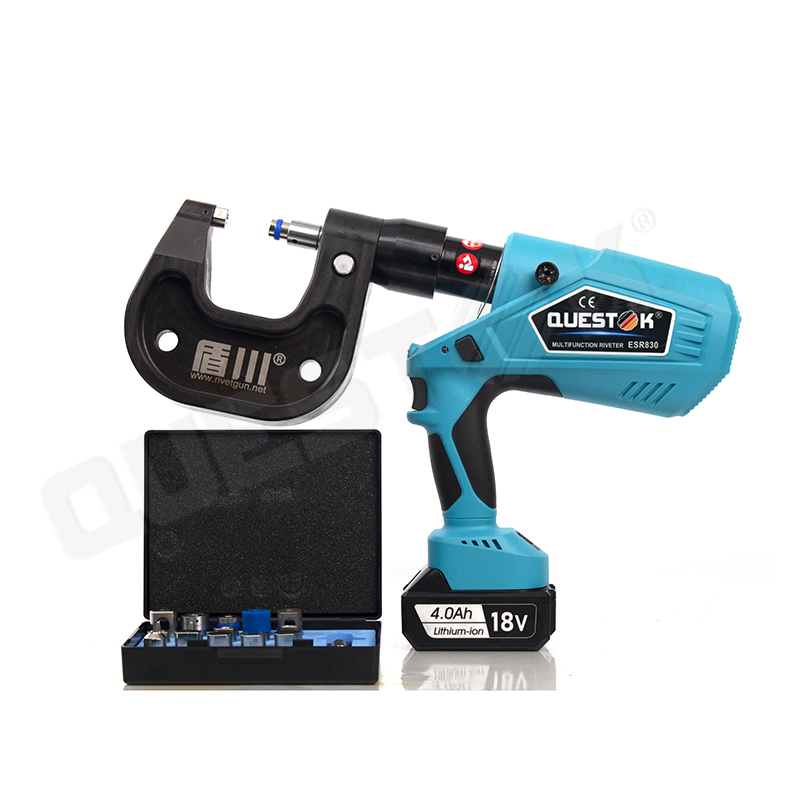

Yes. The tool utilizes mechanical press-joining with adjustable 30–60 kN force output, eliminating thermal stress. This preserves zinc coatings on smoke curtains, HVAC ducts, and commercial appliances without requiring secondary painting or polishing.
Summary & Technical Support
Selecting the ideal sheet metal connection tool requires balancing delivery timelines with specific joint requirements. Standard off-the-shelf solutions available under OBM and direct supply models satisfy immediate project demands with a 3-day sample lead time. For specialized material stacks or custom geometries, ODM engineered solutions deliver optimized pressure distribution within 15 days. All products are supported by CE compliance, 100% pre-shipment functional validation, and complete spare parts assistance. For technical inquiries or direct consultation, reach out to us at jane@questok.com.
