Should You Replace Separate Pre-Milling and Trimming Stations with an Integrated Edge Bander?

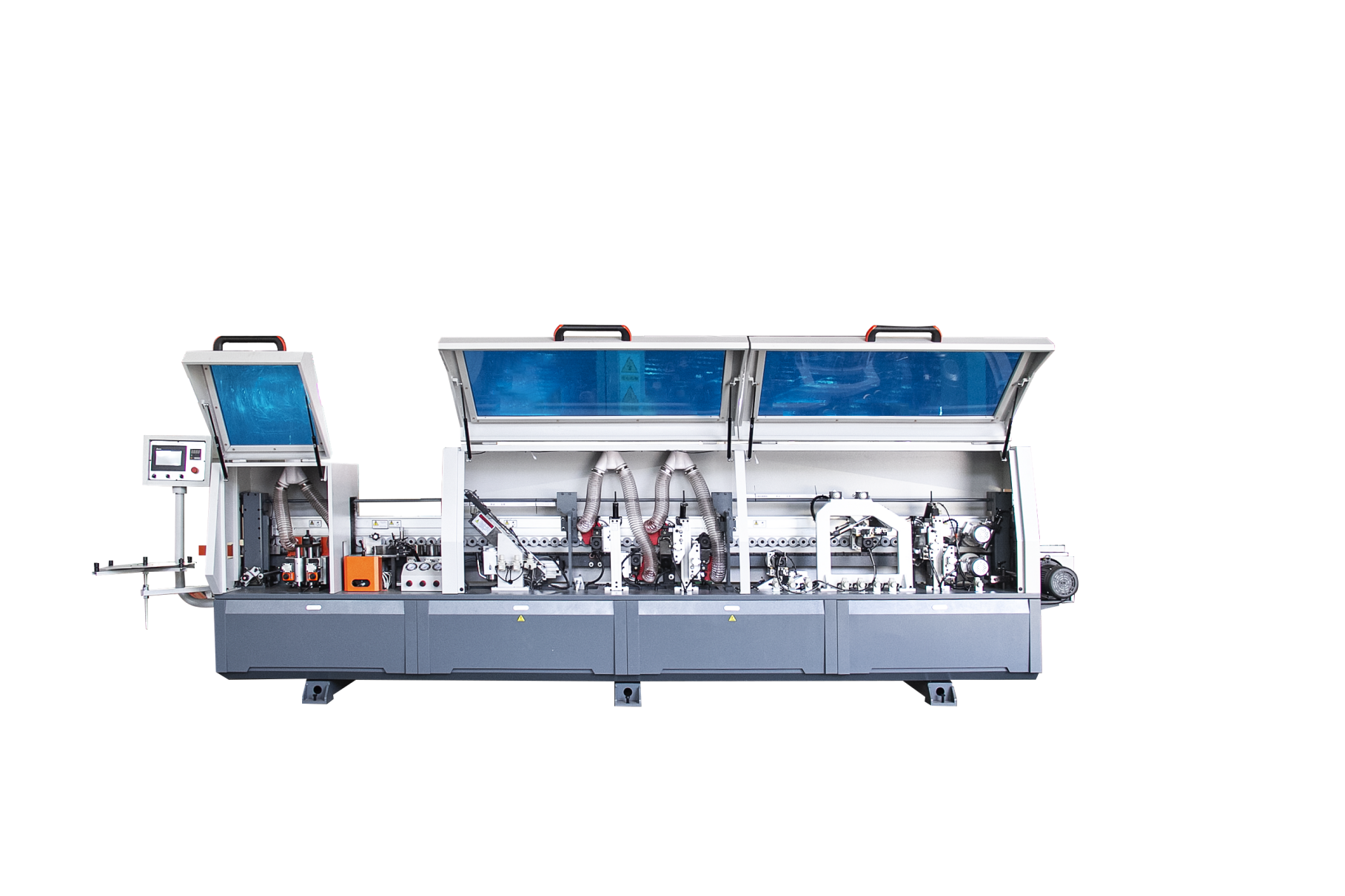

Replacing individual pre-milling and trimming machines with a modern integrated edge banding machine can be a practical upgrade for factories seeking a smoother panel-processing workflow. The Sun Hunt edge banding machine combines edge preparation, gluing, end trimming, fine trimming, scraping and polishing in one production route. However, the right choice depends on output requirements, workshop layout, investment budget and the condition of existing equipment.

Integrated Edge Banding Solution at a Glance

• The machine brings pre-milling, gluing, end trimming, fine trimming, scraping and polishing together in a single system.
• Its published configuration includes two 1.8 kW pre-milling motors, two 0.75 kW fine-trimming motors and total installed power of 11.8 kW.
• A combined workflow can reduce handling and repeated panel positioning, although the available specifications do not quantify labor savings or production increases.
• The equipment is designed for panel furniture and custom furnishing applications such as wardrobes, kitchen cabinets, office furniture and decorative wall panels.

How the Integrated Process Works

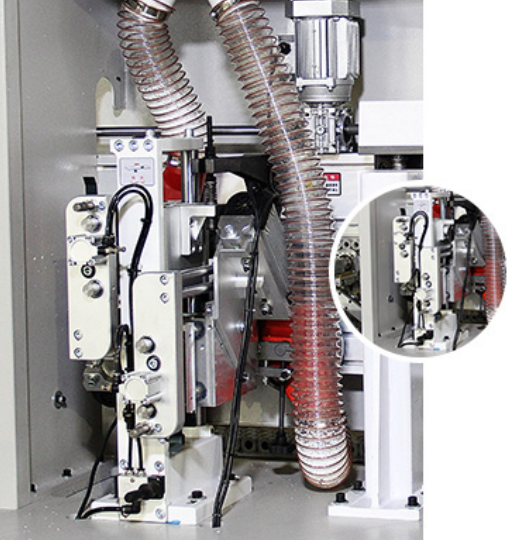

With separate machinery, a panel may need to pass from a pre-milling station to one or more trimming stations before reaching the finishing stages. The Sun Hunt configuration places these operations within one edge banding machine. Its listed sequence includes pre-milling, gluing, end trimming, rough repair, fine trimming, tracking, scraping and polishing, allowing the panel edge to move through preparation and finishing with fewer process handoffs.

The machine is specified with high, middle and low feeding speeds. Its overall dimensions are 5500 mm × 850 mm × 1650 mm, and its stated weight is 2000 kg. The delivery motor is rated at 2.2 kW, while the heating motor is rated at 1.5 kW. These figures define the machine configuration, but they do not by themselves prove a higher output rate than a production line built from separate stations.

When Is Replacement Worth Considering?

An integrated machine may be especially suitable when a factory wants to shorten the distance between edge-processing operations and simplify internal material flow. It can support manufacturing for custom wardrobes, kitchen units, office furniture, panel furniture and decorative wall systems.

Before replacing functioning equipment, smaller workshops should review the available floor area, electrical capacity, total machine weight and compatibility with the current production sequence. A factory with reliable separate stations may prefer to retain them if the existing process already meets its quality and capacity targets. By contrast, an integrated system may be attractive when space is limited or repeated transfers create bottlenecks.

Quality Checks and Project Experience

Sun Hunt reports that its machines undergo full precision calibration and extended load-running tests before shipment. The inspection program includes mechanical clearance checks, positioning accuracy verification and control-program testing. The company also states that machines, spare parts, consumables, tools, packaging and technical documents are checked before delivery.

Reported projects include equipment planning for a wooden door manufacturer in India and a wood-processing production line in the UAE. These examples suggest experience in production-line planning, but they do not represent a controlled cost or productivity comparison between an integrated edge bander and separate pre-milling and trimming equipment.

Integrated Machine Versus Separate Stations

Frequently Asked Questions

Does the machine perform both pre-milling and trimming?

Yes. The listed functions cover pre-milling, gluing, end trimming, rough repair, fine trimming, scraping and polishing. The configuration includes two pre-milling motors and two fine-trimming motors.

Can an integrated machine guarantee lower manufacturing costs?

No. The available information does not establish guaranteed cost reductions. Fewer transfers and less repeated positioning may improve workflow, but the actual result depends on production volume, staffing, layout, operating methods and the performance of the current machines.

What after-sales assistance is available?

Sun Hunt states that it offers online technical assistance through video or voice calls, installation tutorials, ongoing technical support, spare-parts arrangements and solutions for machine modifications or control-system optimization. The stated warranty is one year, excluding consumable parts and damage caused by incorrect operation.

Final Buying Recommendation

A Sun Hunt integrated edge banding machine can be a suitable replacement when a factory wants one coordinated process for panel furniture or custom home-furnishing production. Buyers should compare the machine's 11.8 kW power requirement, 2000 kg weight, overall dimensions, feeding-speed options and stated 30-day delivery time with their existing workshop conditions.

Sun Hunt also accepts non-standard customized products and complete production-line projects. One set is stated as an acceptable MOQ for general solutions, while this specific product lists a two-set MOQ. For technical consultation or support, contact vincent@fsshmachine.cn.

About Foshan Sun Hunt Woodworking Machinery

Foshan Sun Hunt Woodworking Machinery Co.,Ltd. develops and manufactures woodworking machinery for a range of processing applications. Founded in 2014, the company operates a 2,000-square-meter factory and reports a production capacity of 50 medium-sized machines per month, or 600 machines annually. Its portfolio includes CNC router machines, double-end saws, planers, drilling machines, edge banding machines and panel saws, supported by an internal management and R&D team.
